Product Design
2024

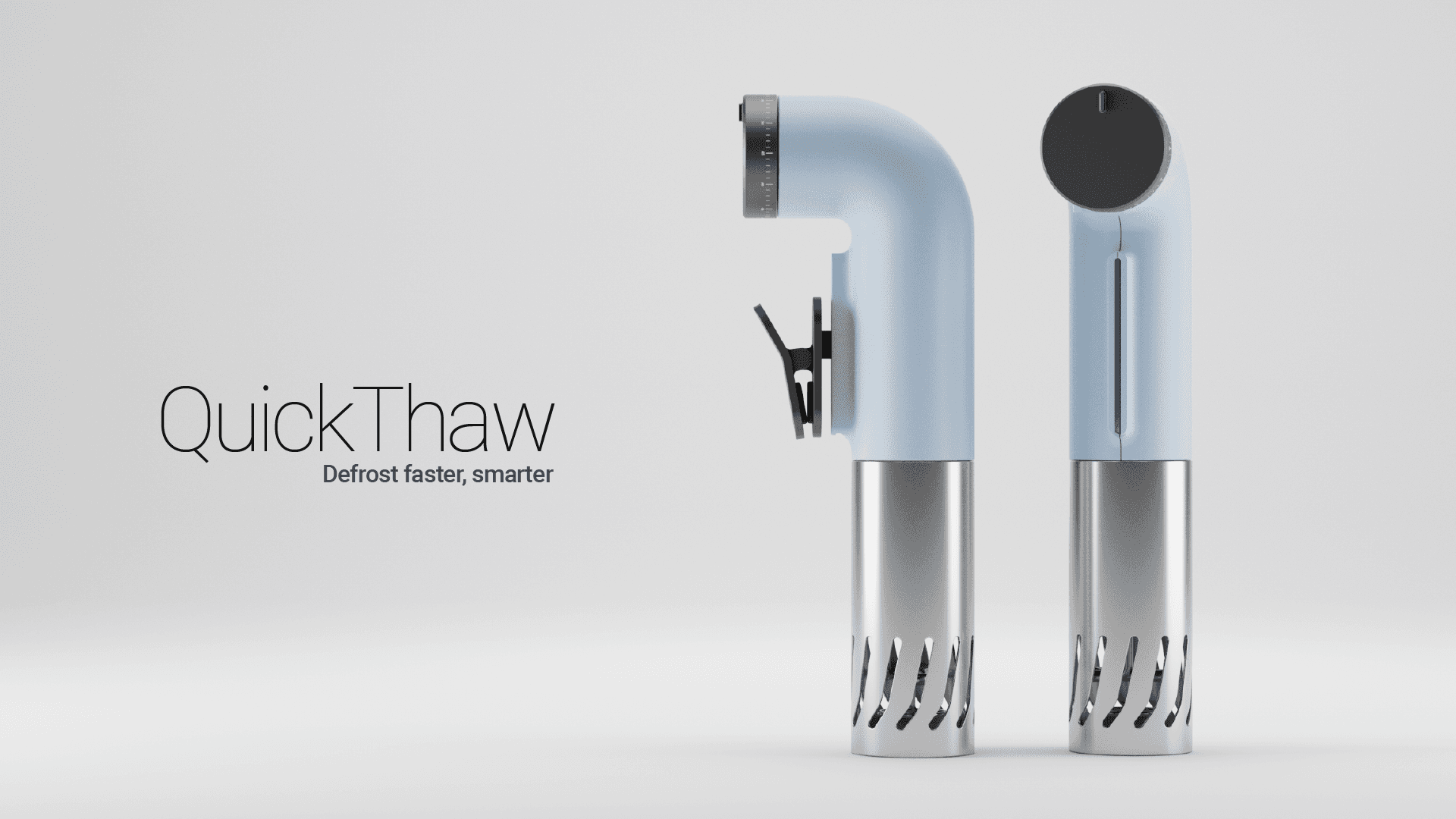

QuickThaw
Defroster
Overview
QuickDraw is a food defroster that uses heat and water circulation to thaw frozen goods. Simply place it in a pot of water with the frozen food, and it will circulate and warm the water, gradually bringing the food to a fresh, unfrozen state in a short time. It enhances the cooking experience with improved efficiency and cleanliness.

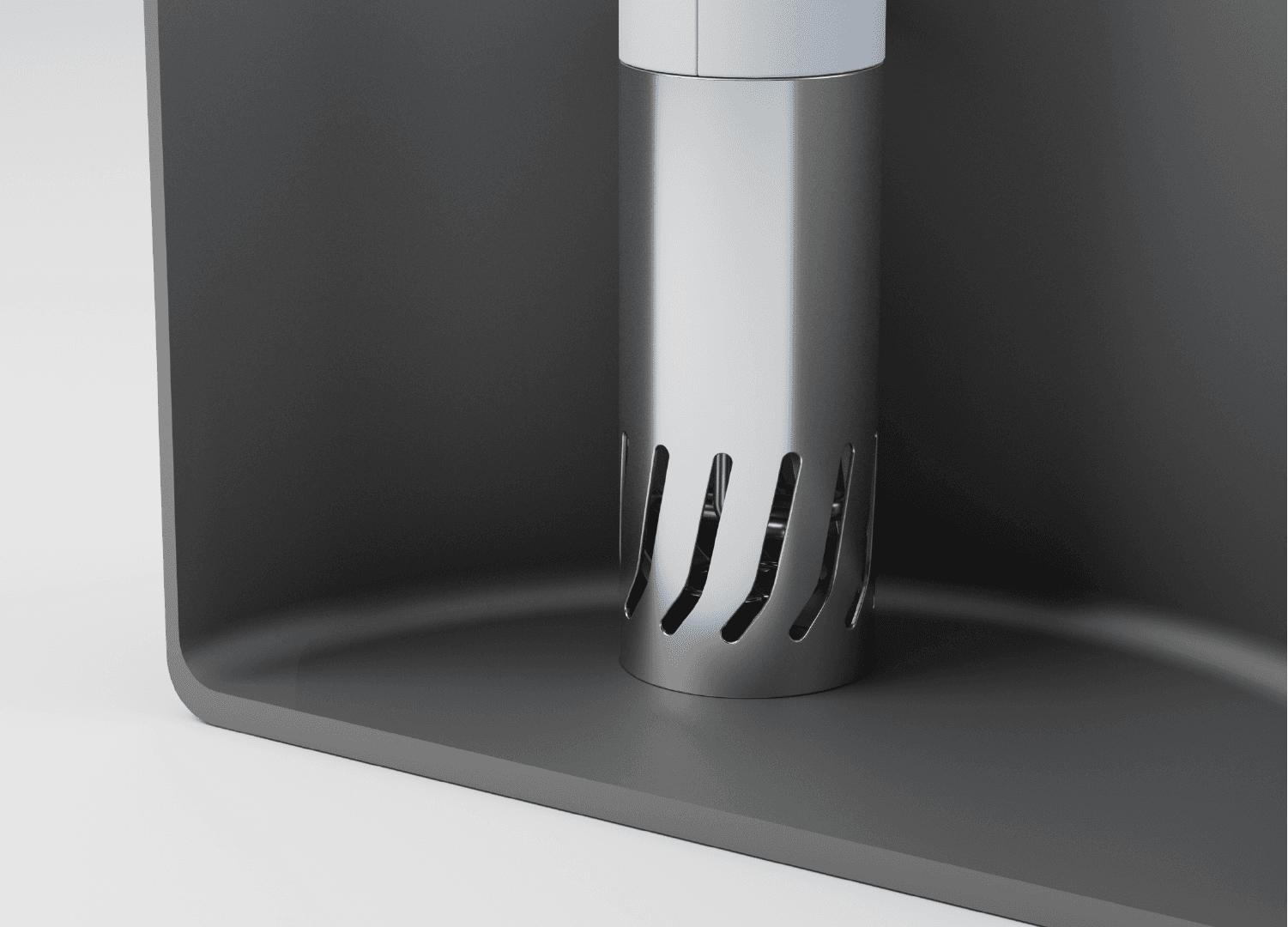

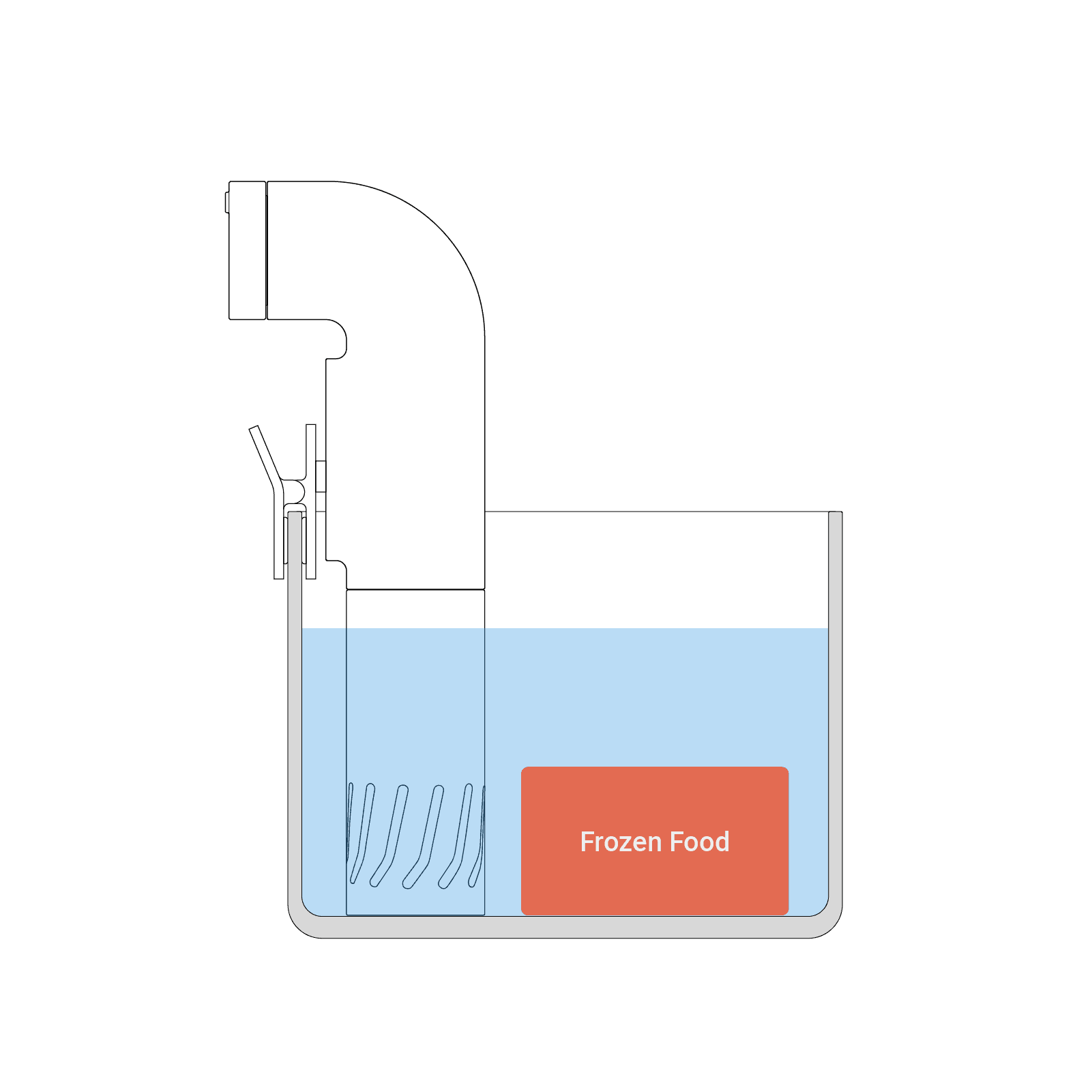

The thawing stick is designed to be set up inside a container. Once the container is filled with water to the desired level and the frozen food is fully submerged, the stick can be turned on to start the defrosting process. When activated, the stick creates water circulation by stirring while simultaneously heating the surrounding water. This gradually raises the overall temperature, effectively thawing the food.

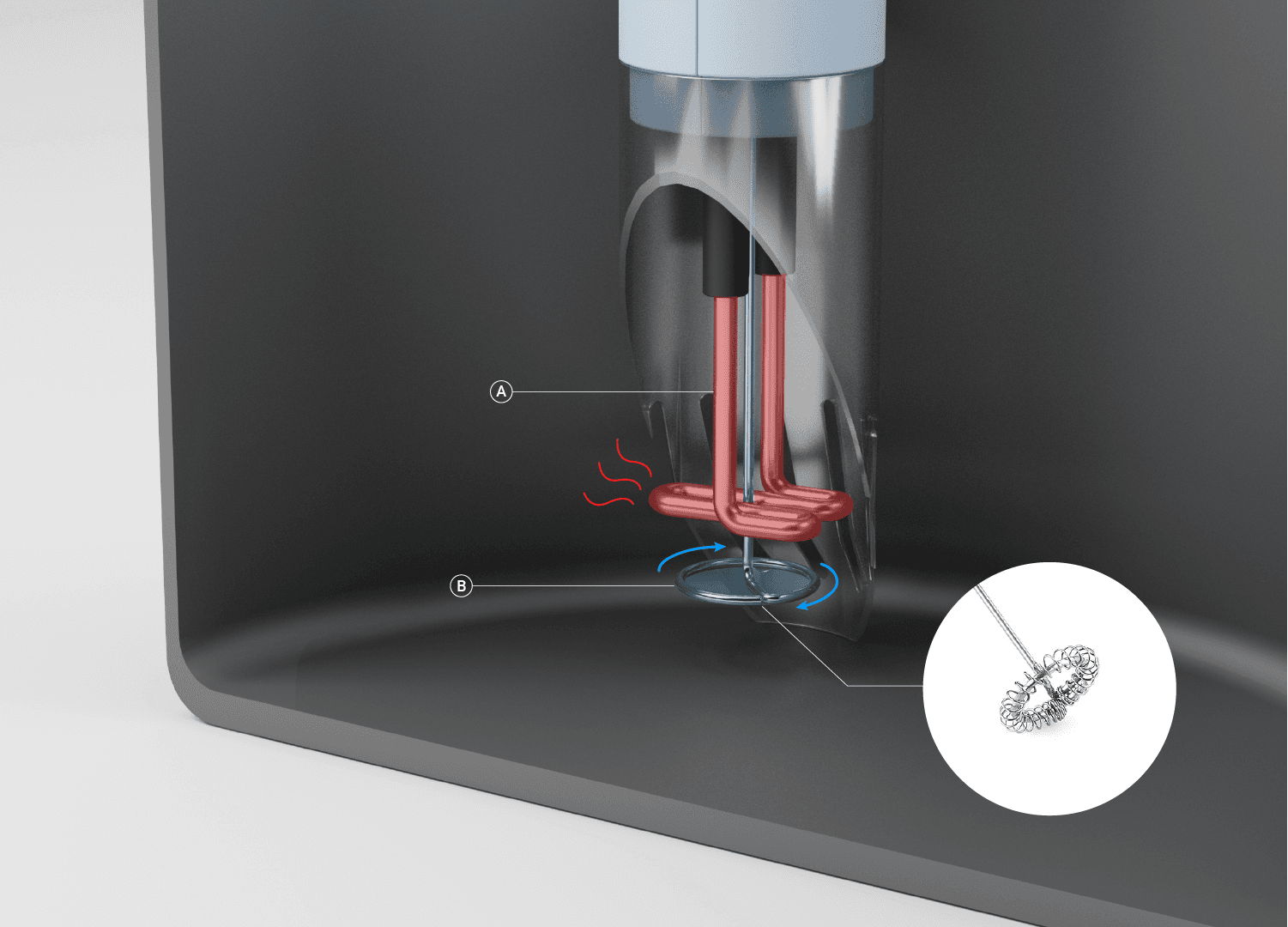

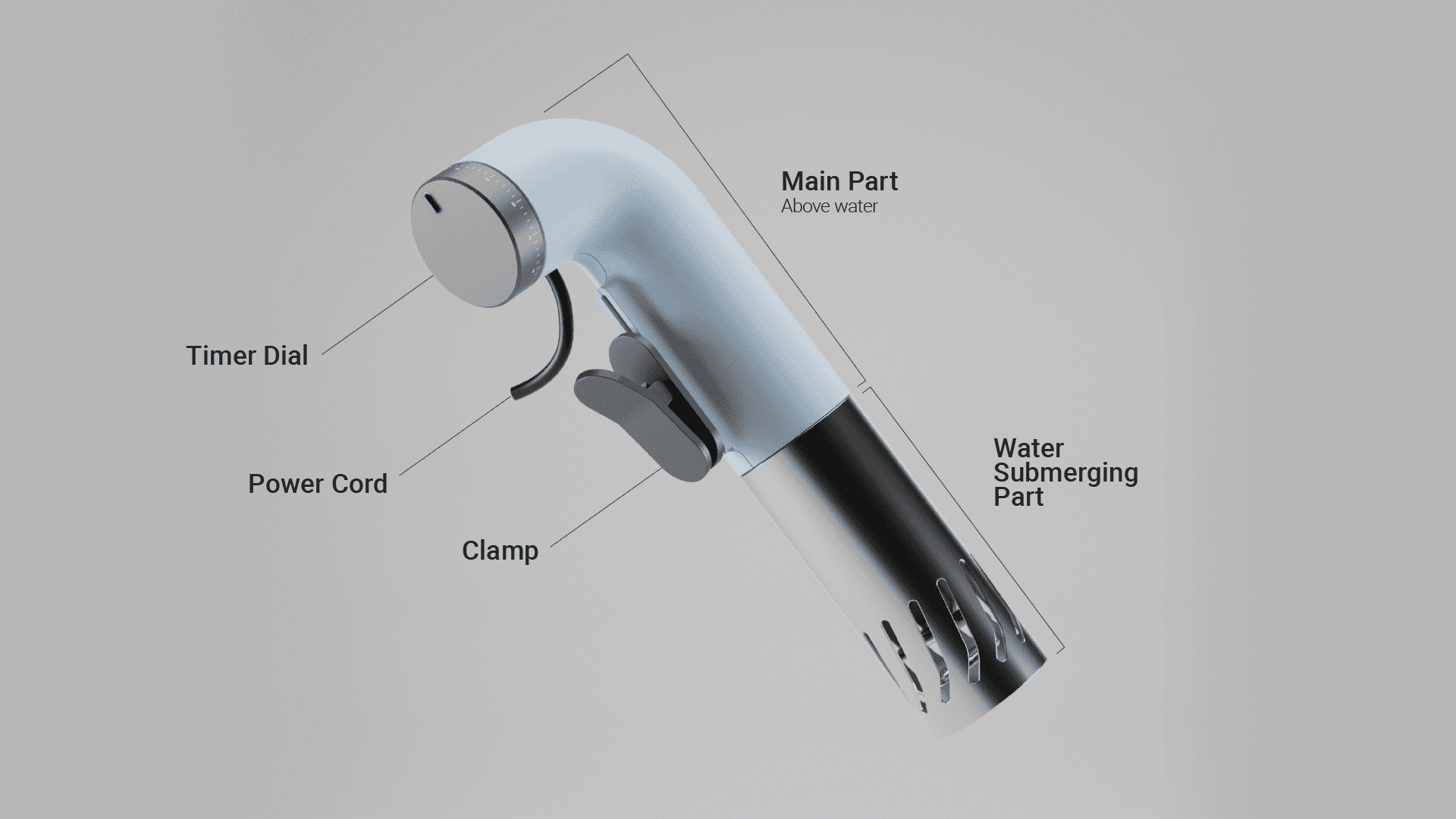

How does it work?
Heating Tube
Spinning Tip
The heating tube continuously warms the surrounding water, while the spinning tip keeps the water moving, creating circulation within the container.

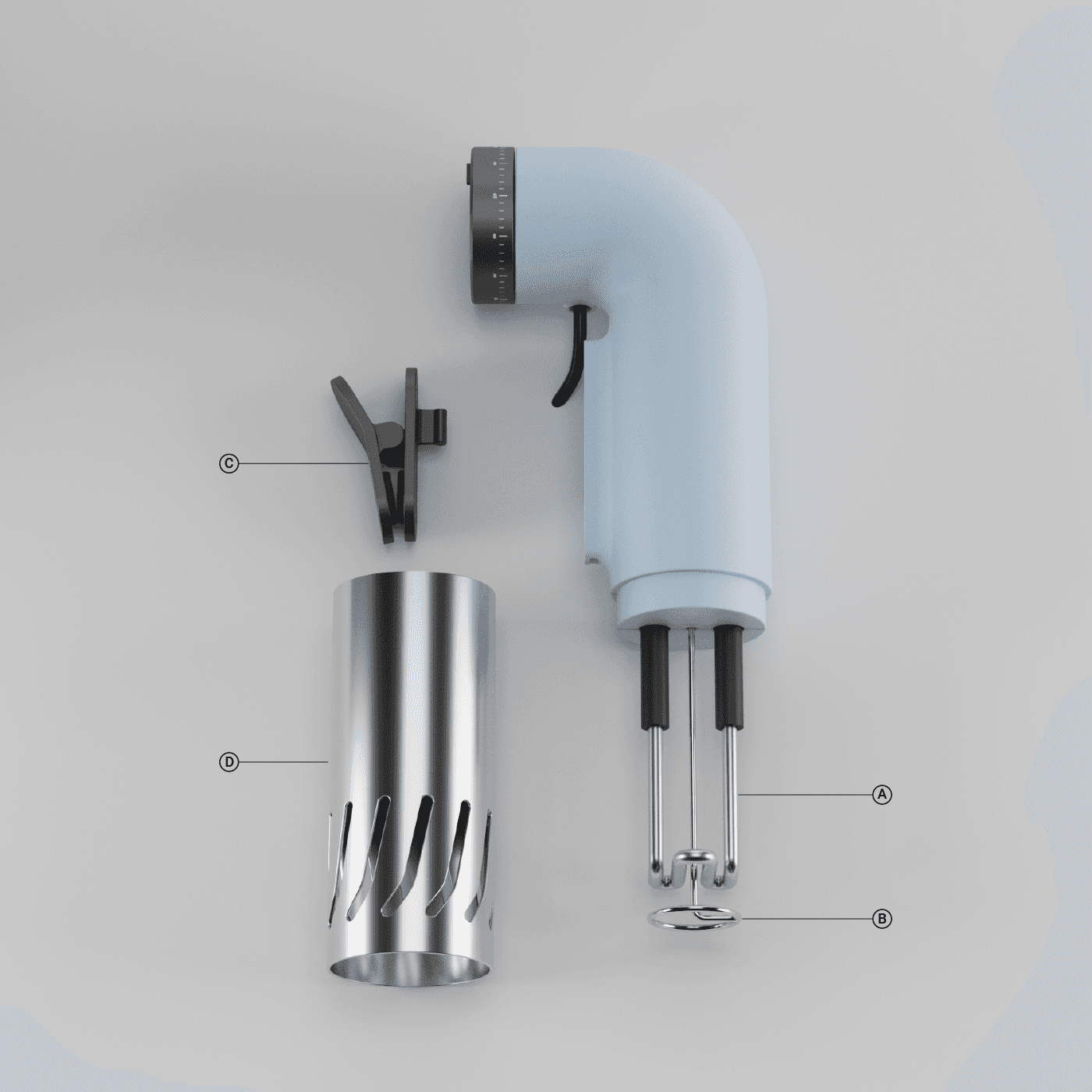

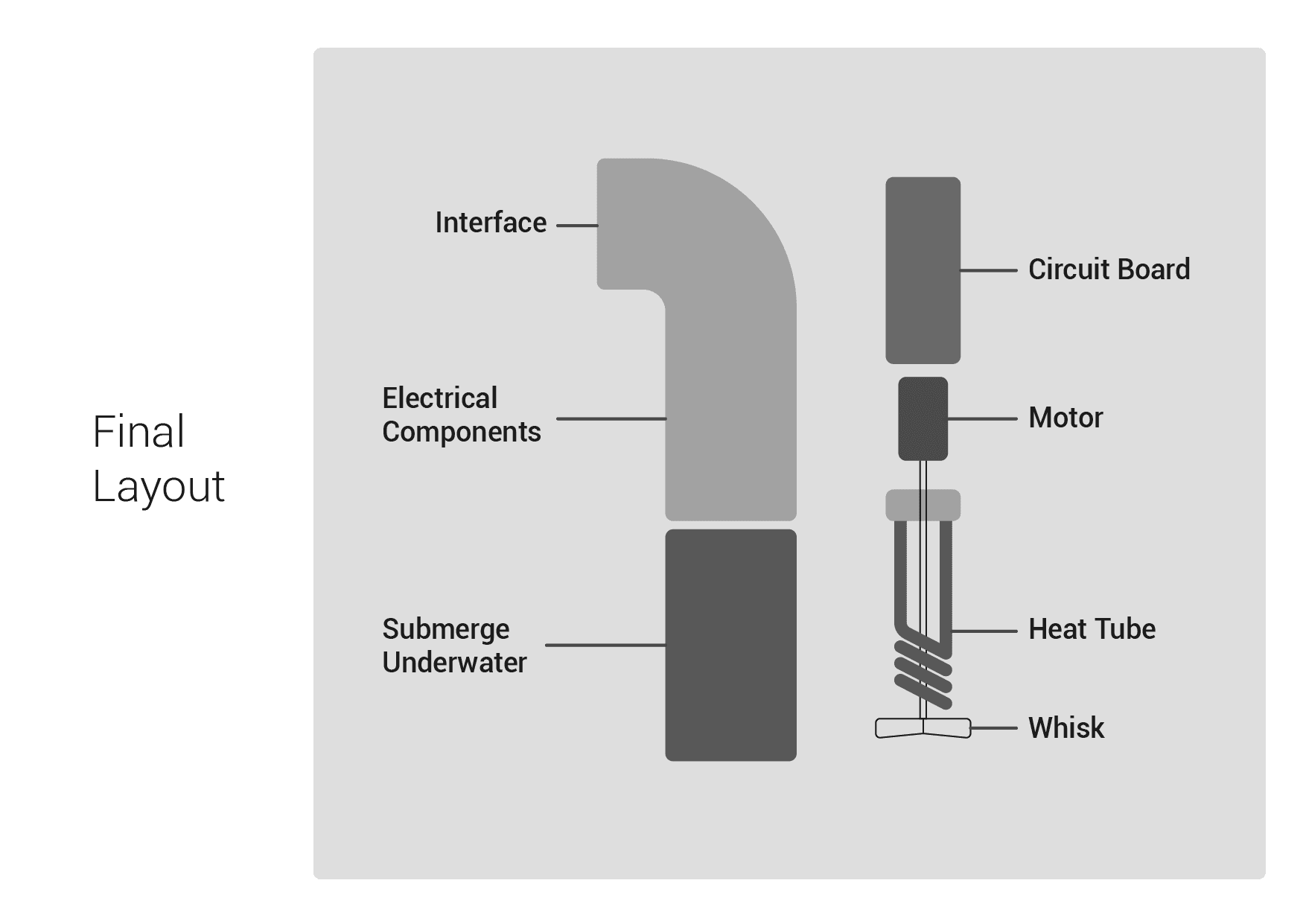

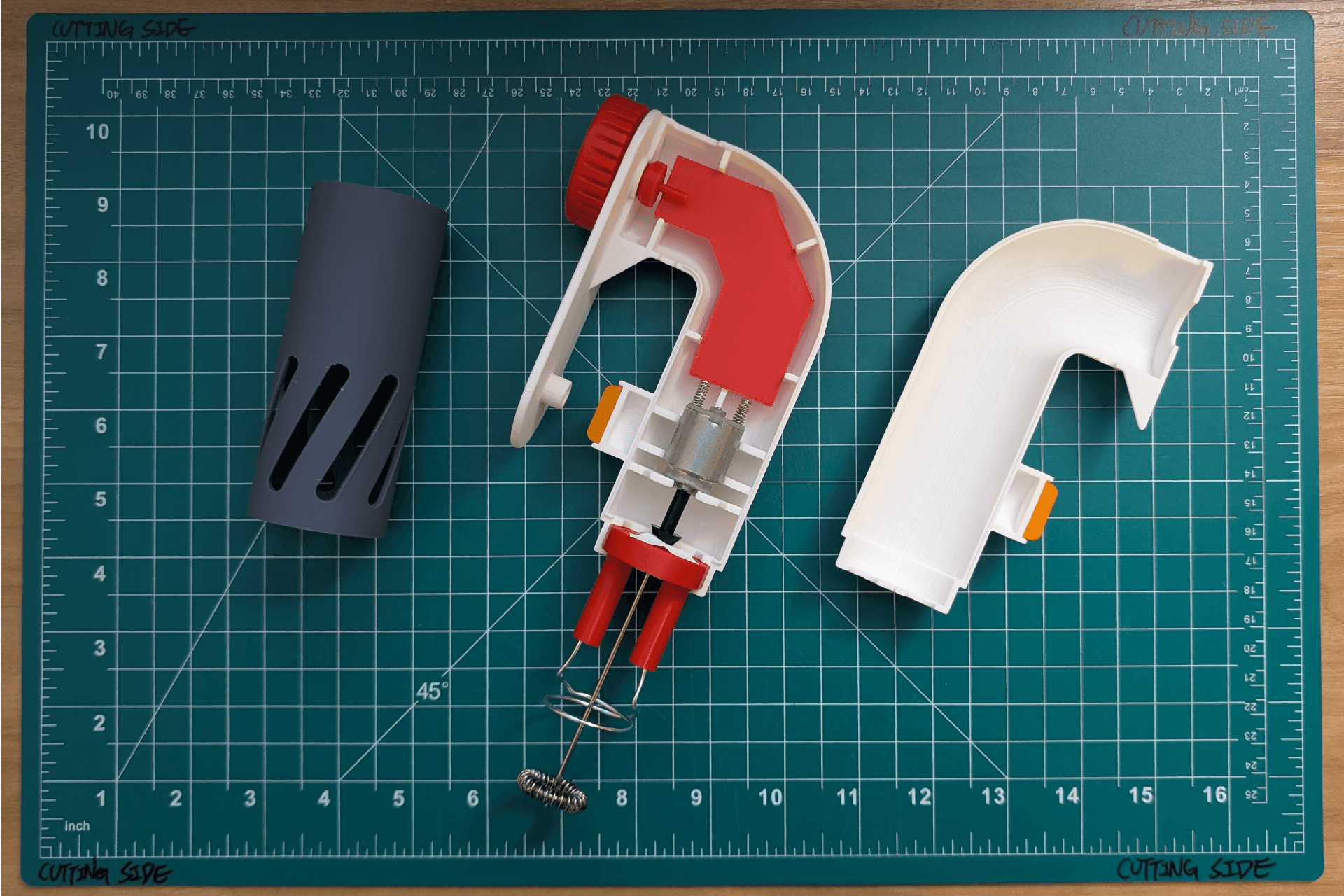

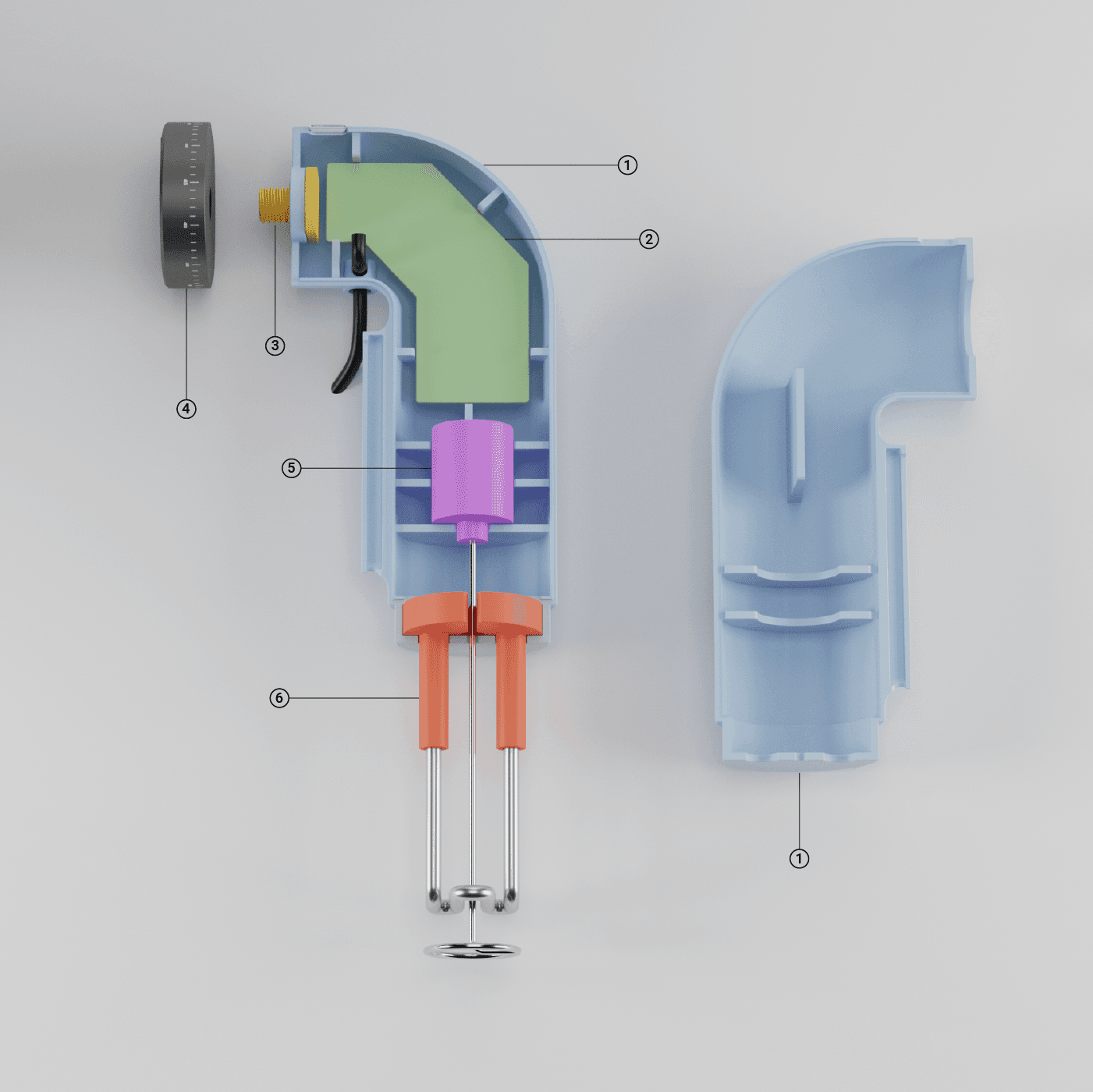

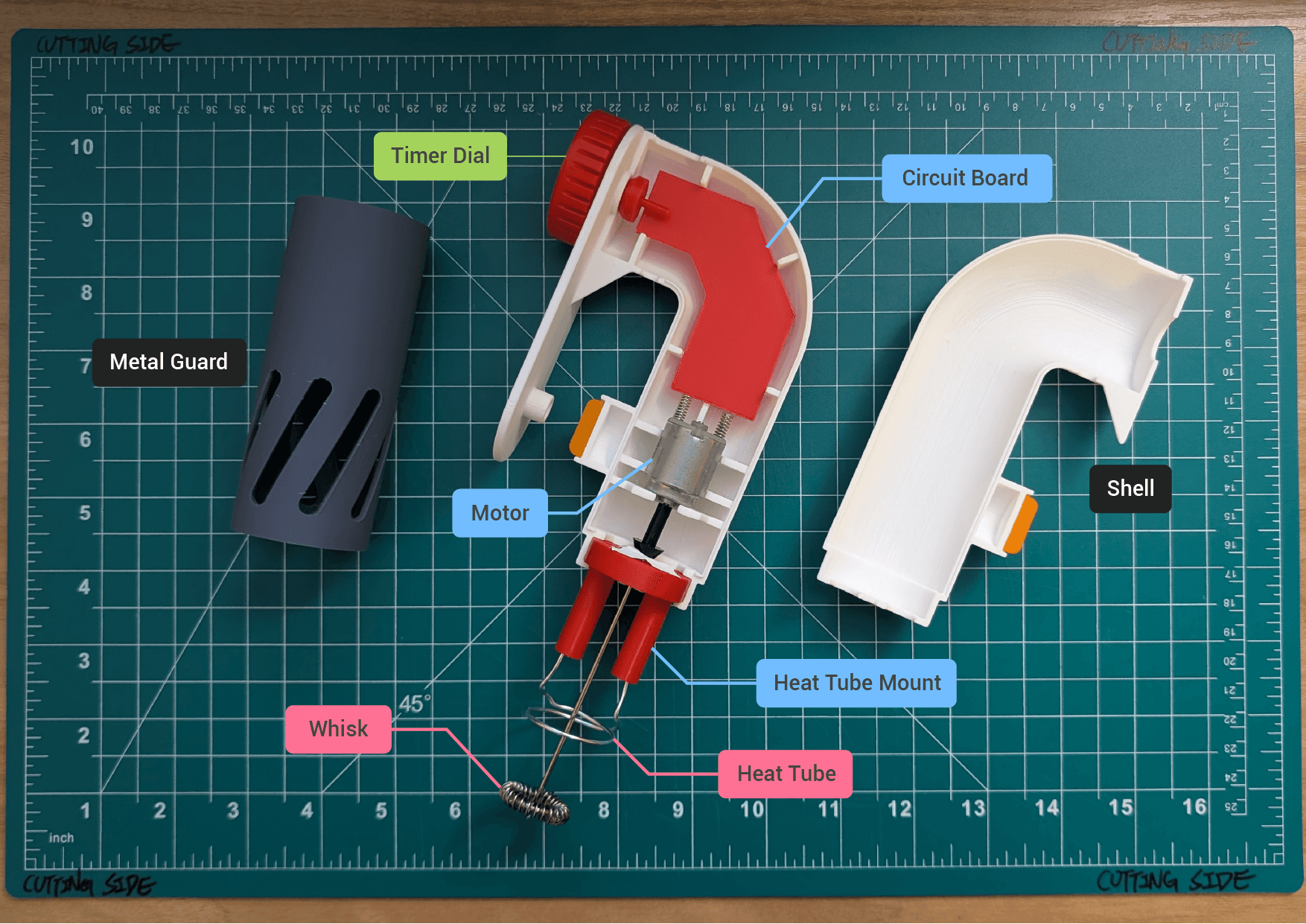

Assembly
Heating Tube
Spinning Tip
Clamp
Safety Guard
Casing
PCB
Dial Axis
Timer Dial
Motor
Tube Mount
Features

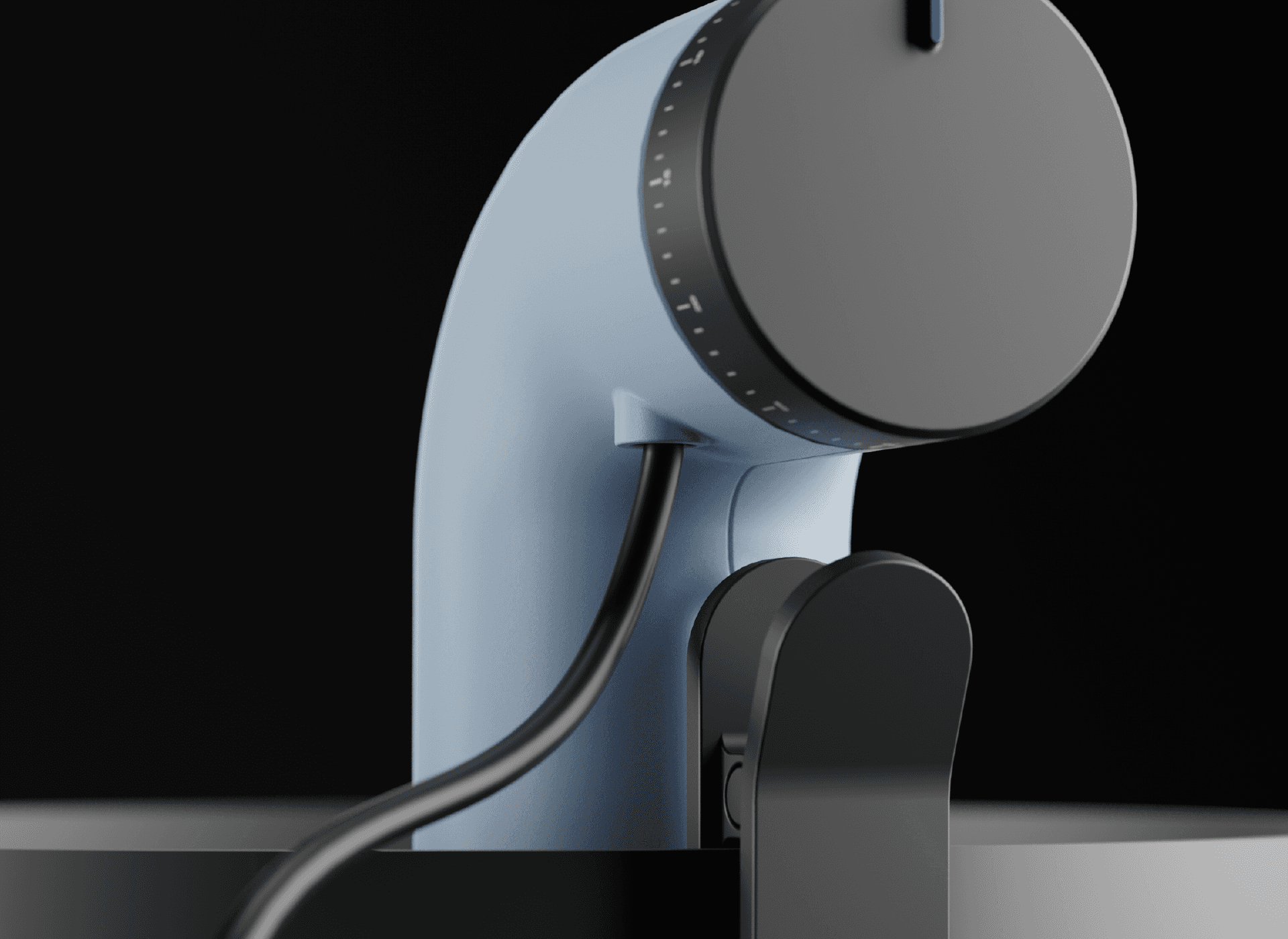

The stick is secured with a clamp on the side, allowing for adjustable positioning by sliding it up or down. It is compatible with containers of any diameter and works effectively at depths ranging from 110 mm to 170 mm.

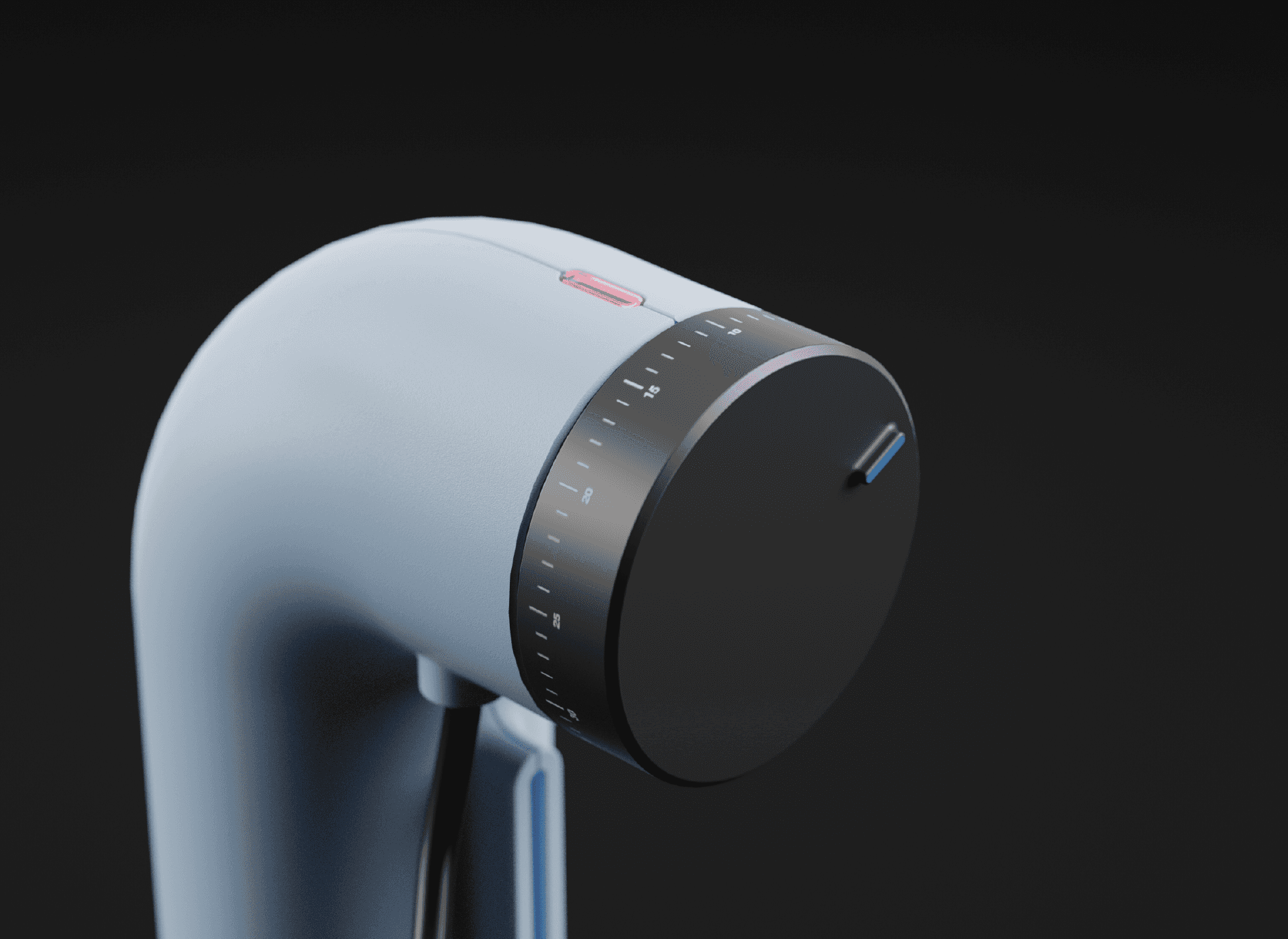

Set the timer by turning the dial to the desired number of minutes. The device will turn off automatically when the time is up. The light indicator on top displays blue when connected to power and red when powered on.
The power cord ensures the stick cannot be activated without being plugged into an outlet, eliminating the risk of accidental activation.

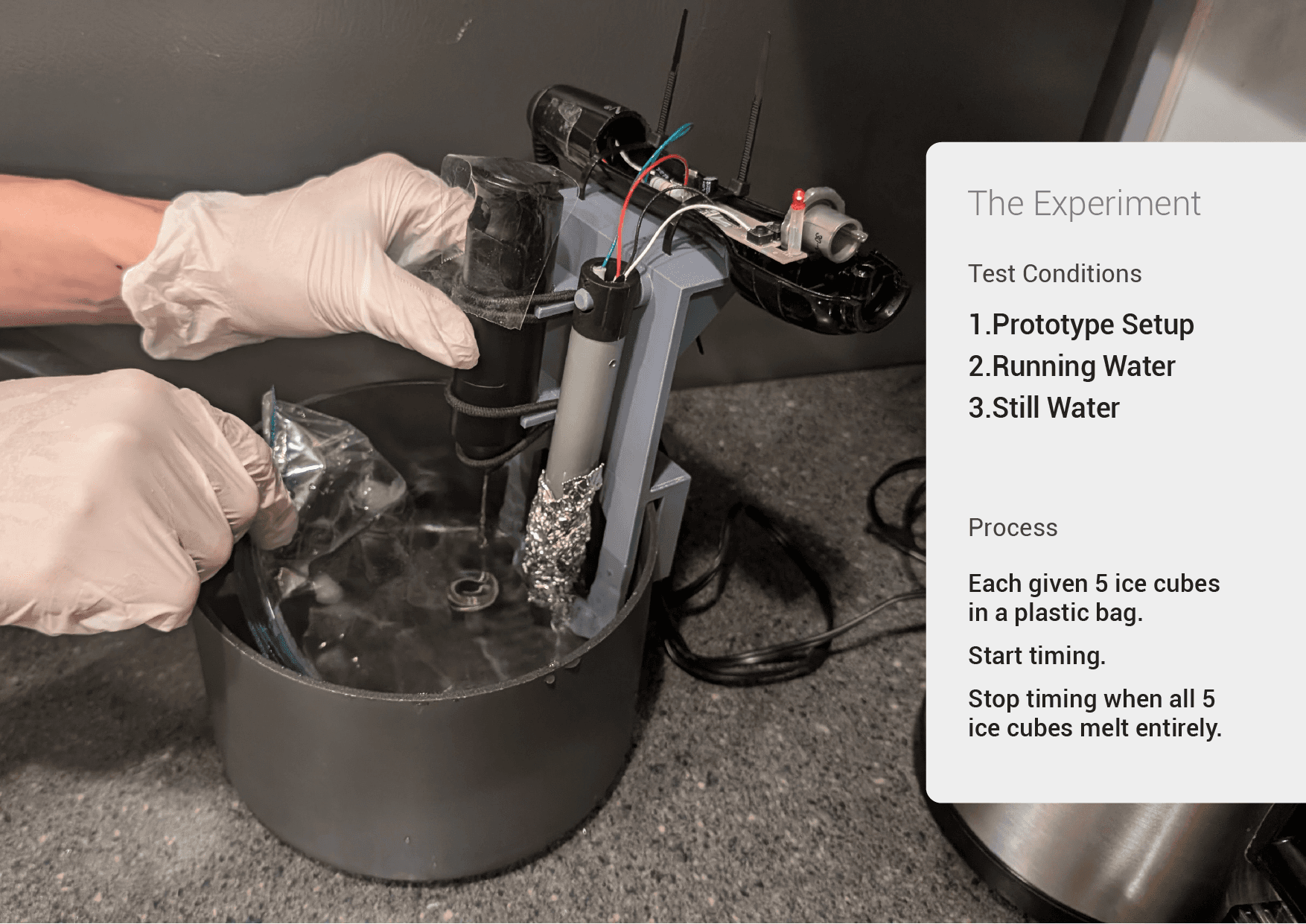

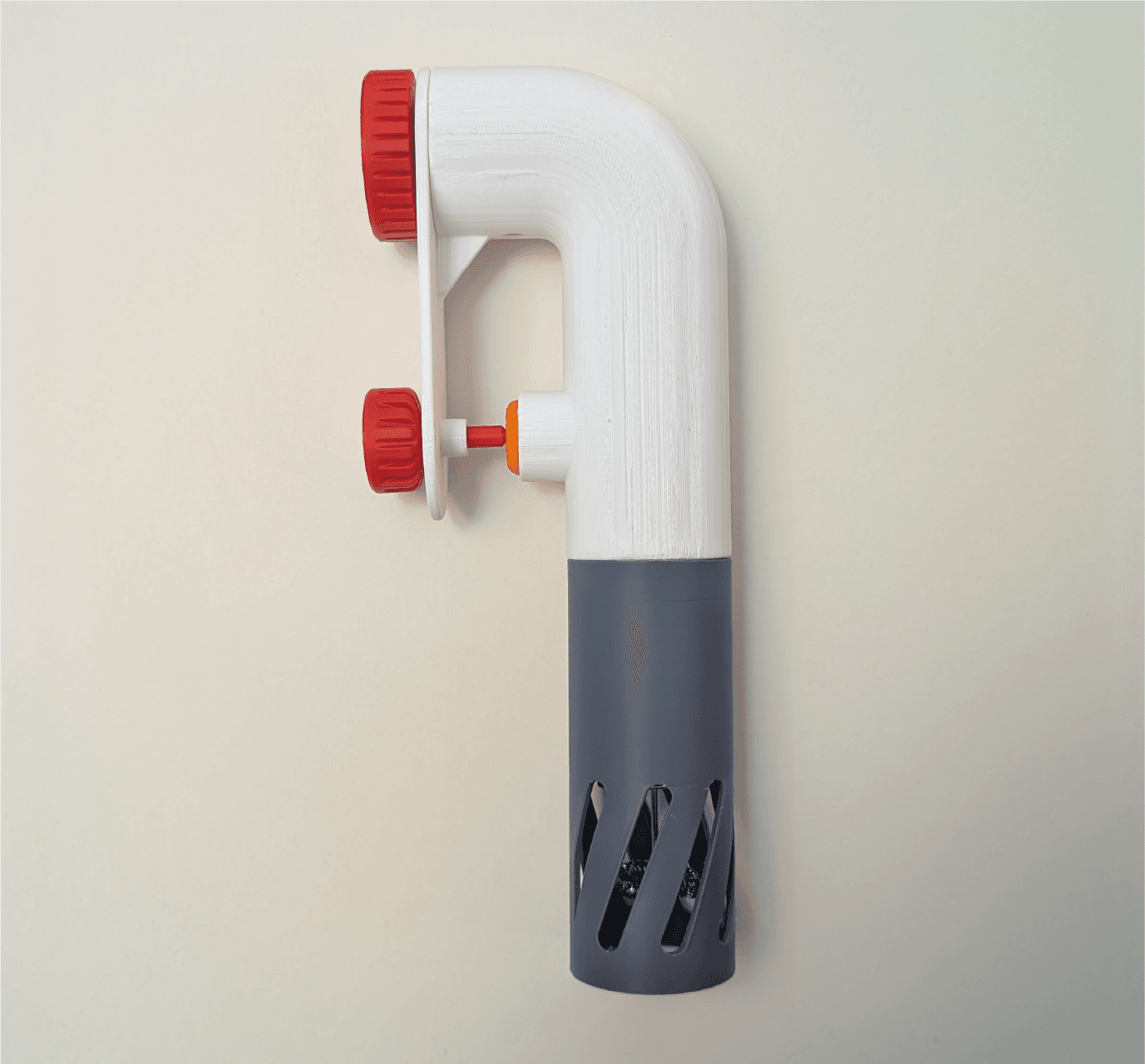

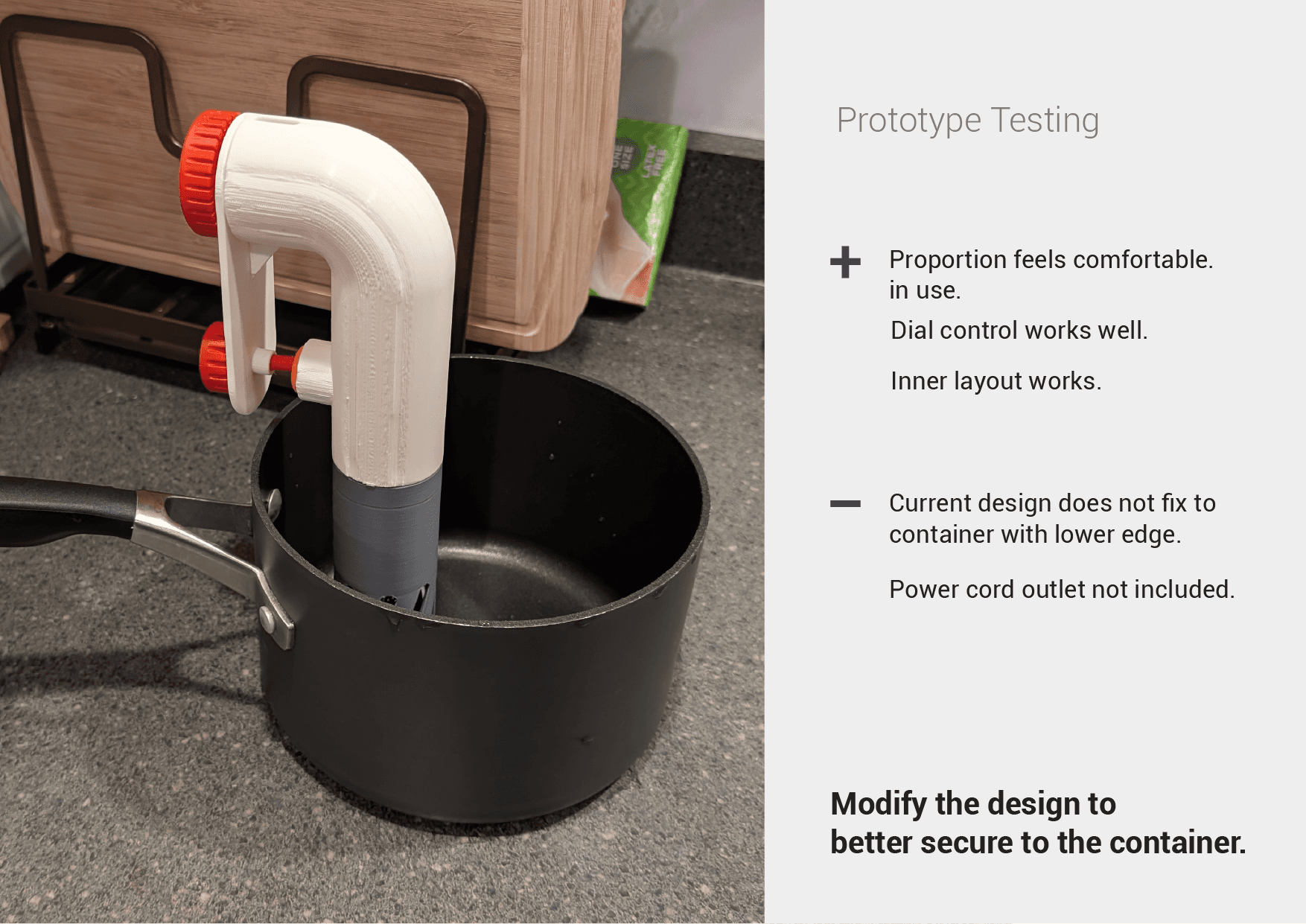

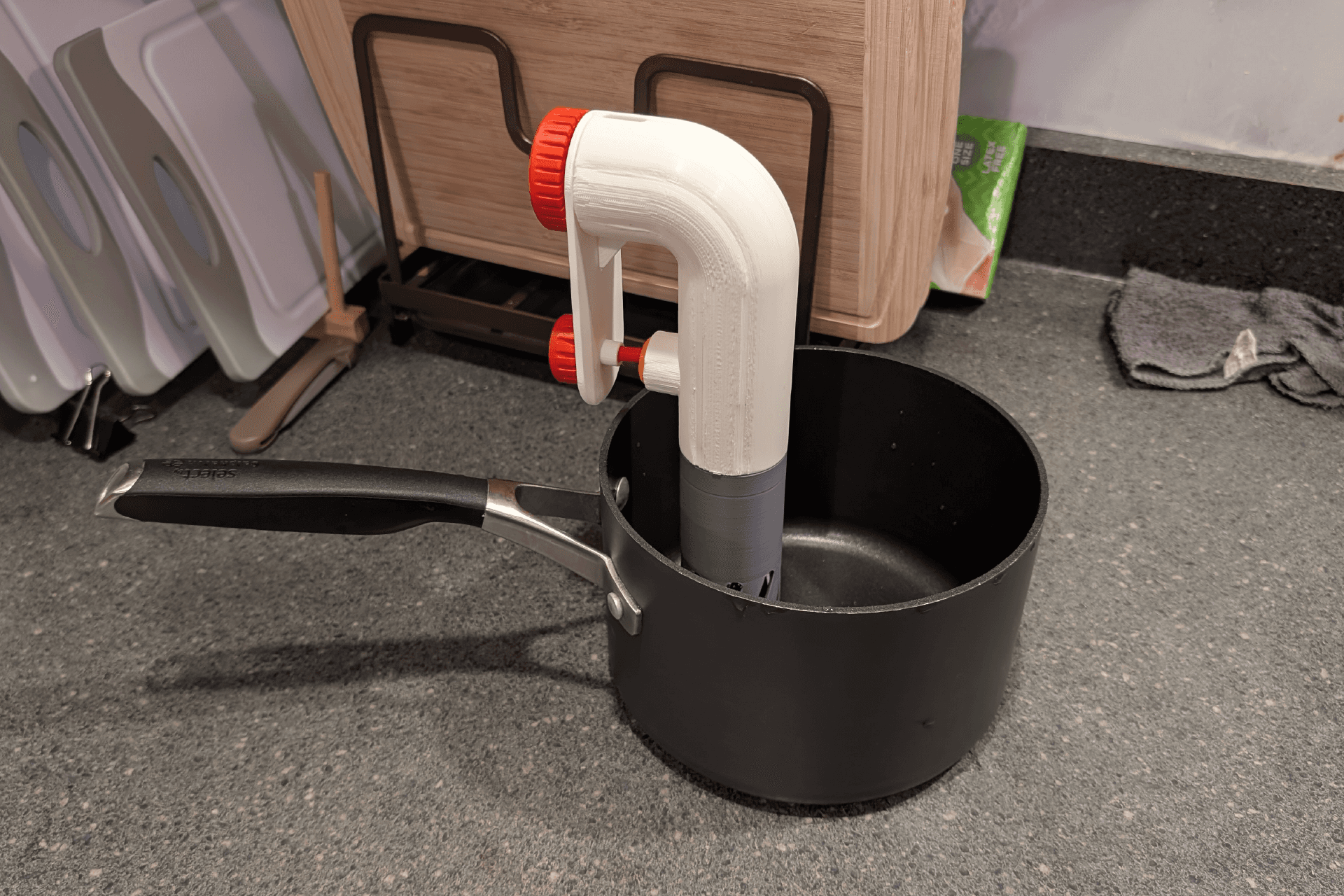

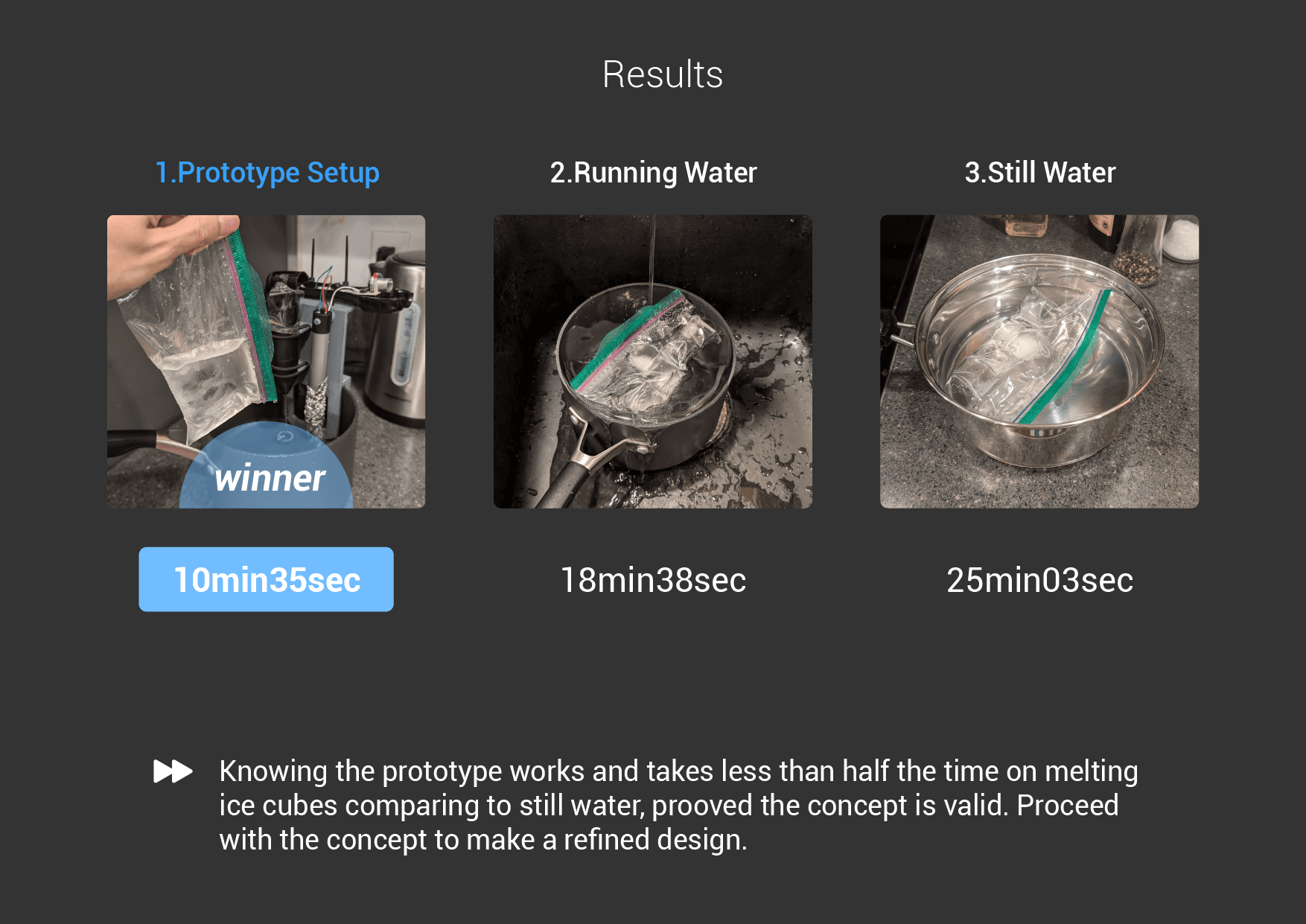

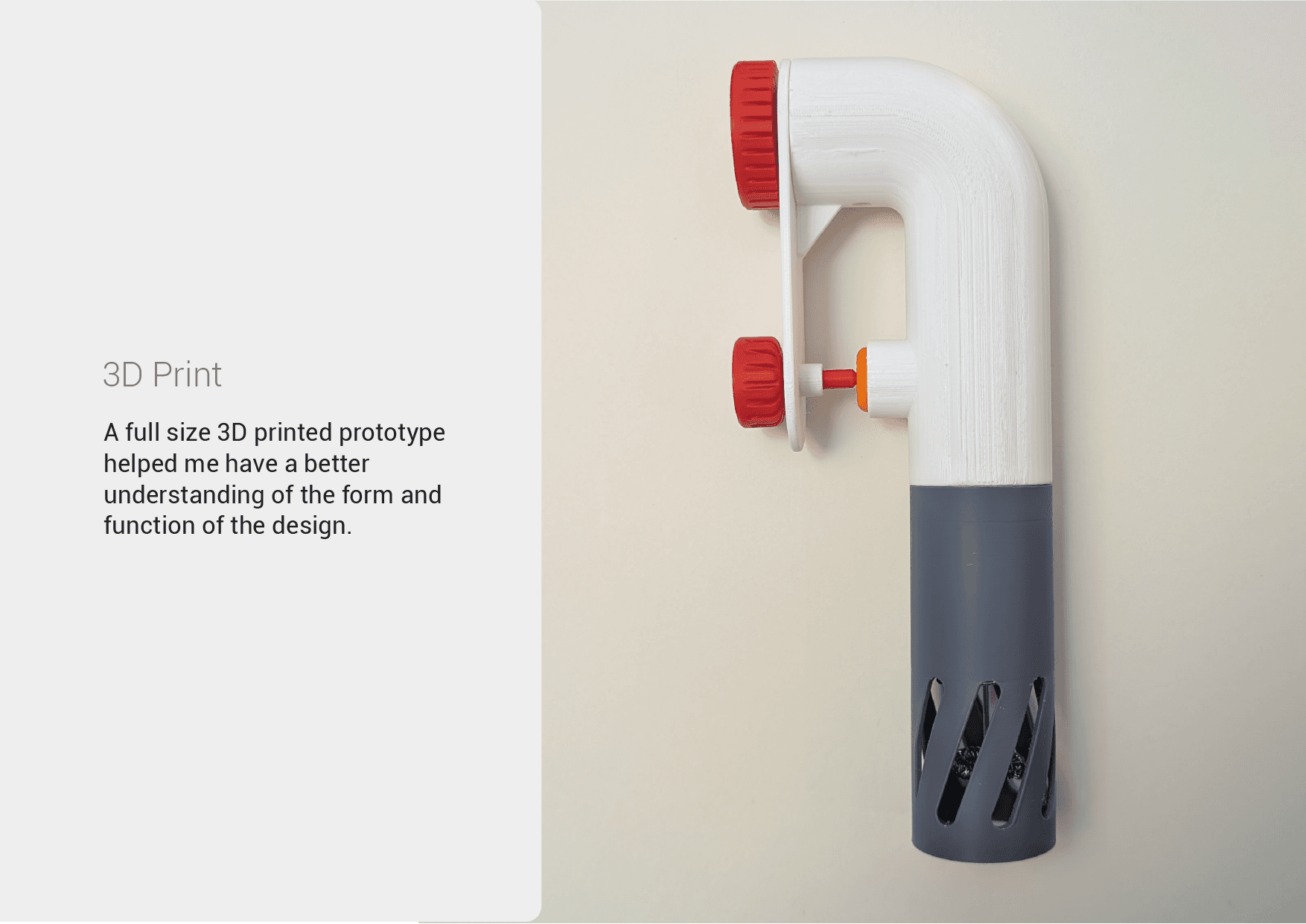

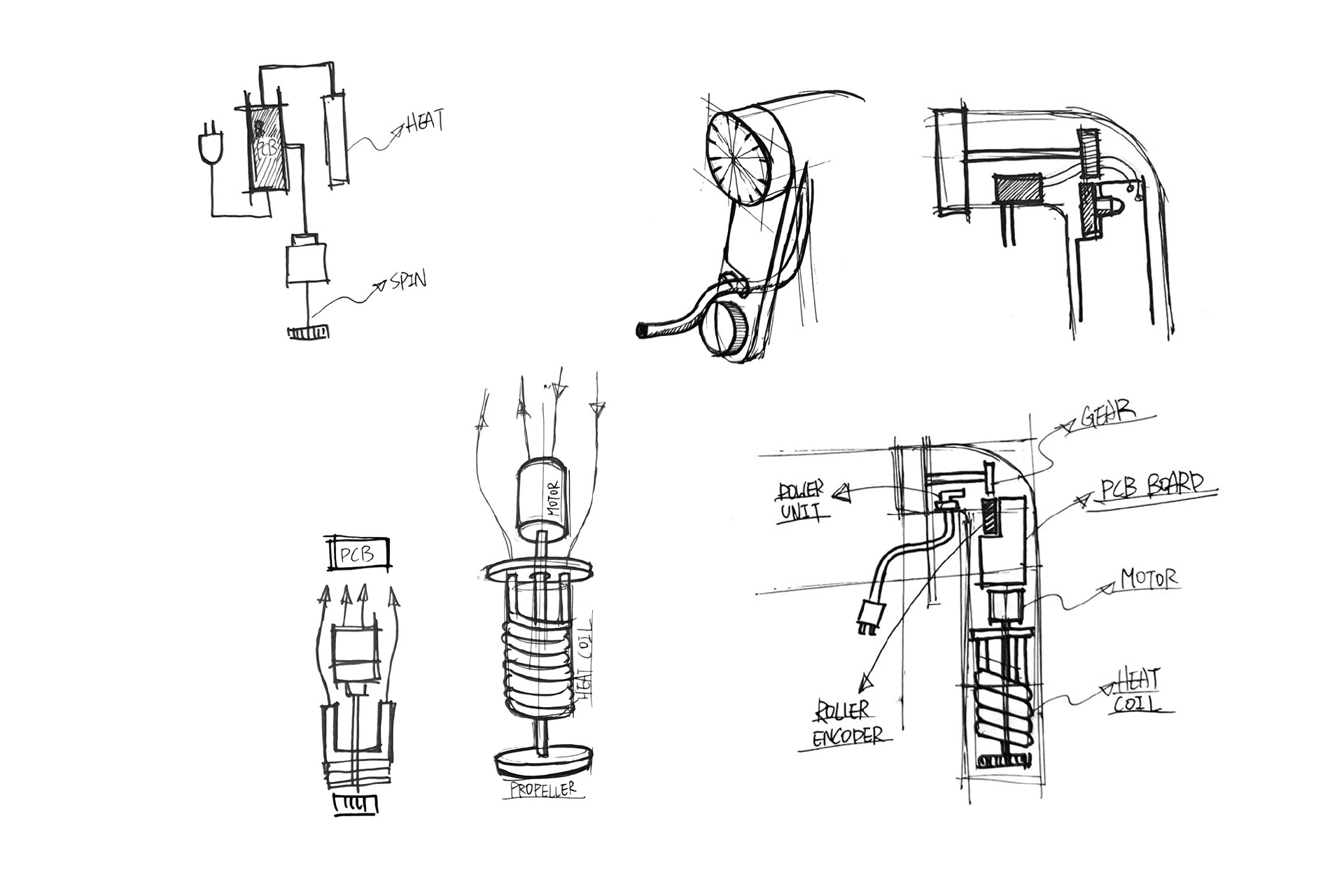

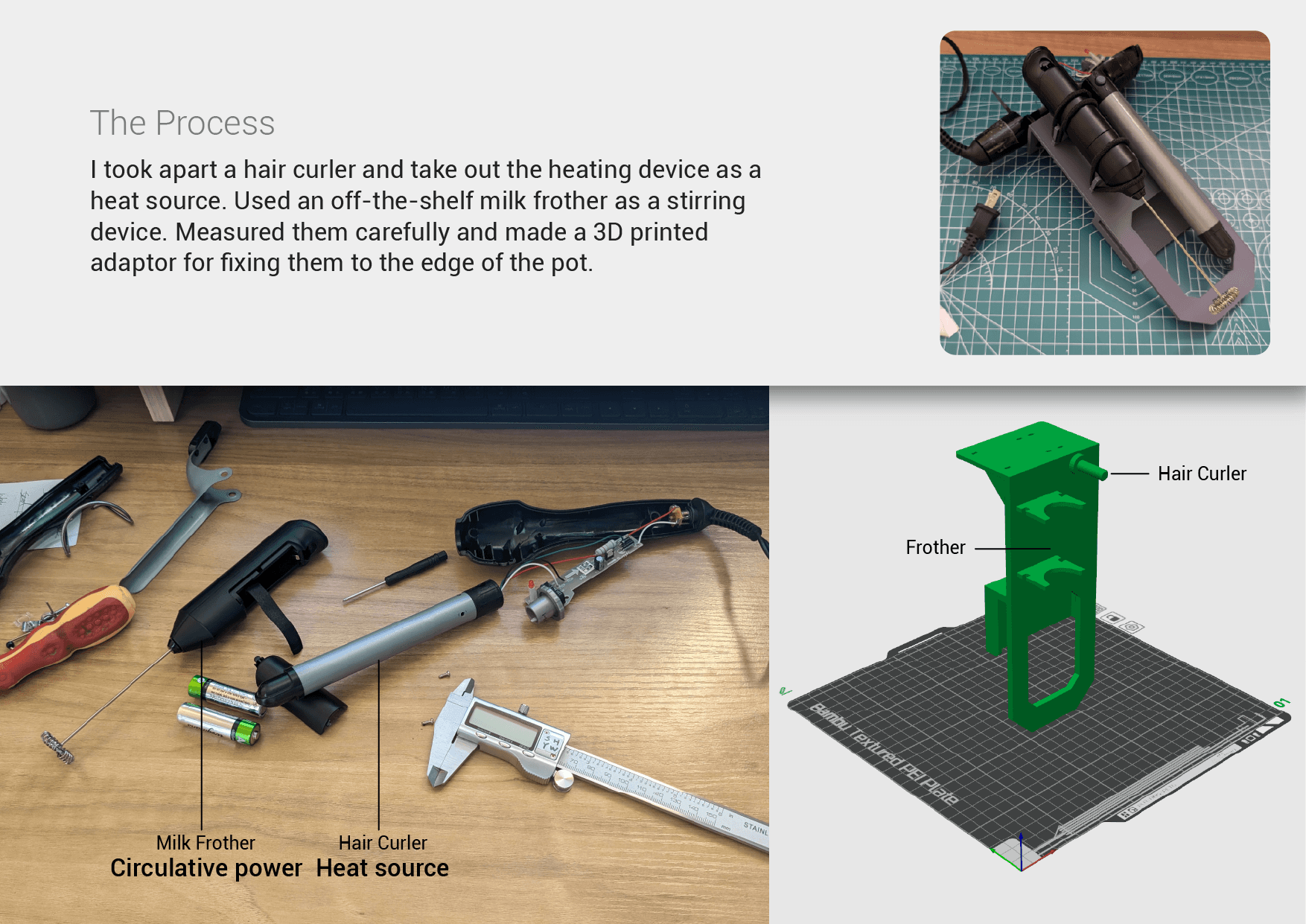

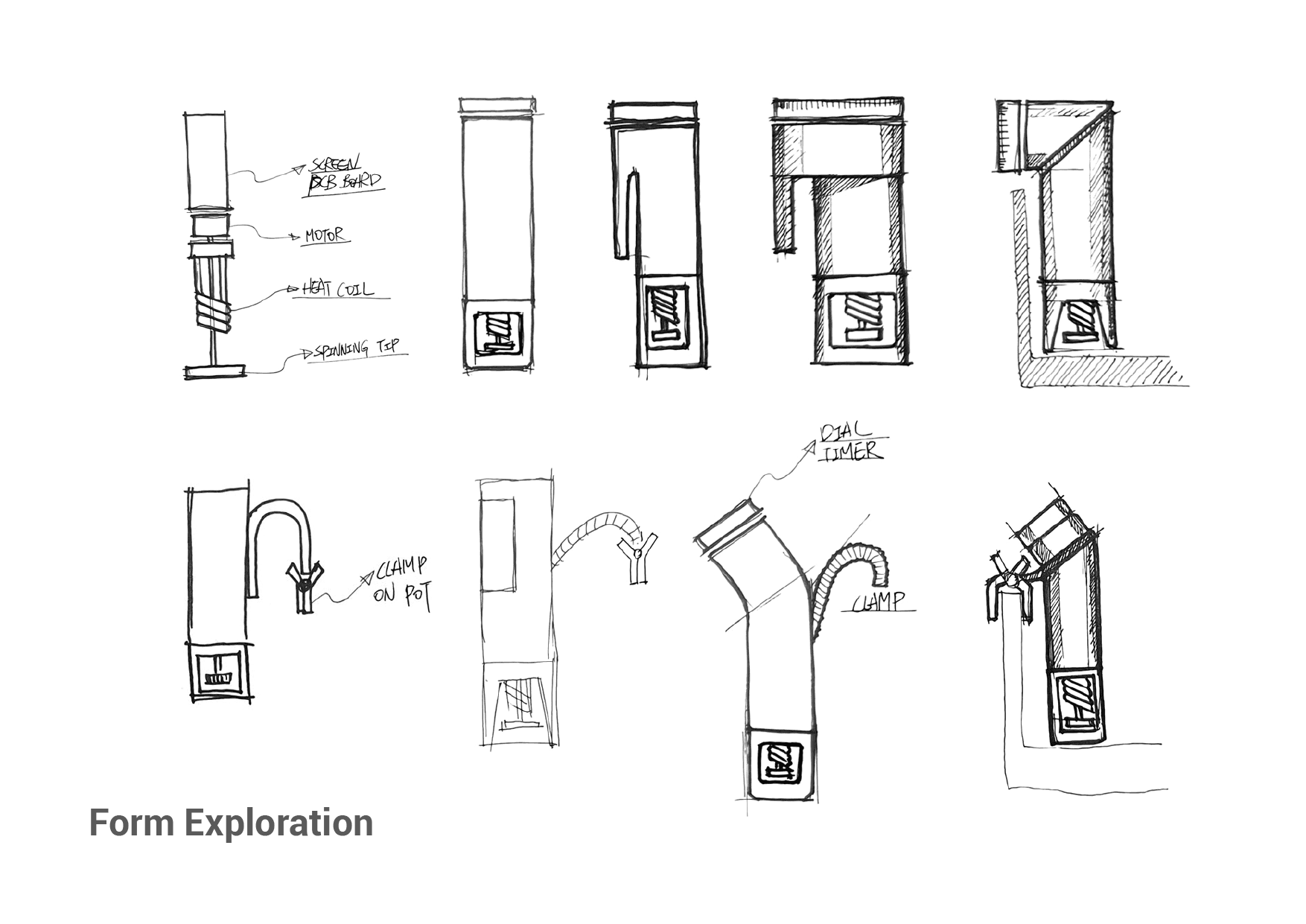

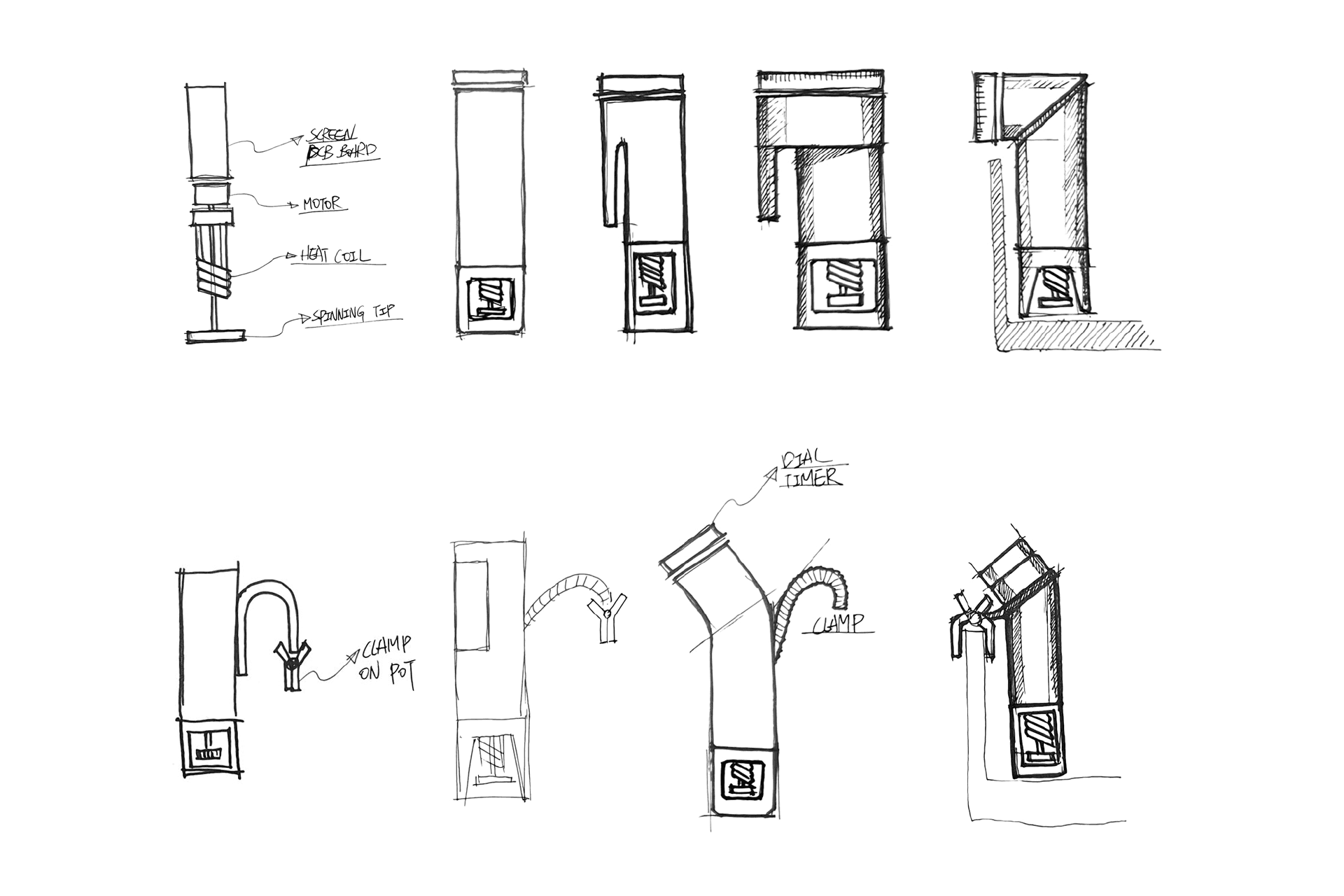

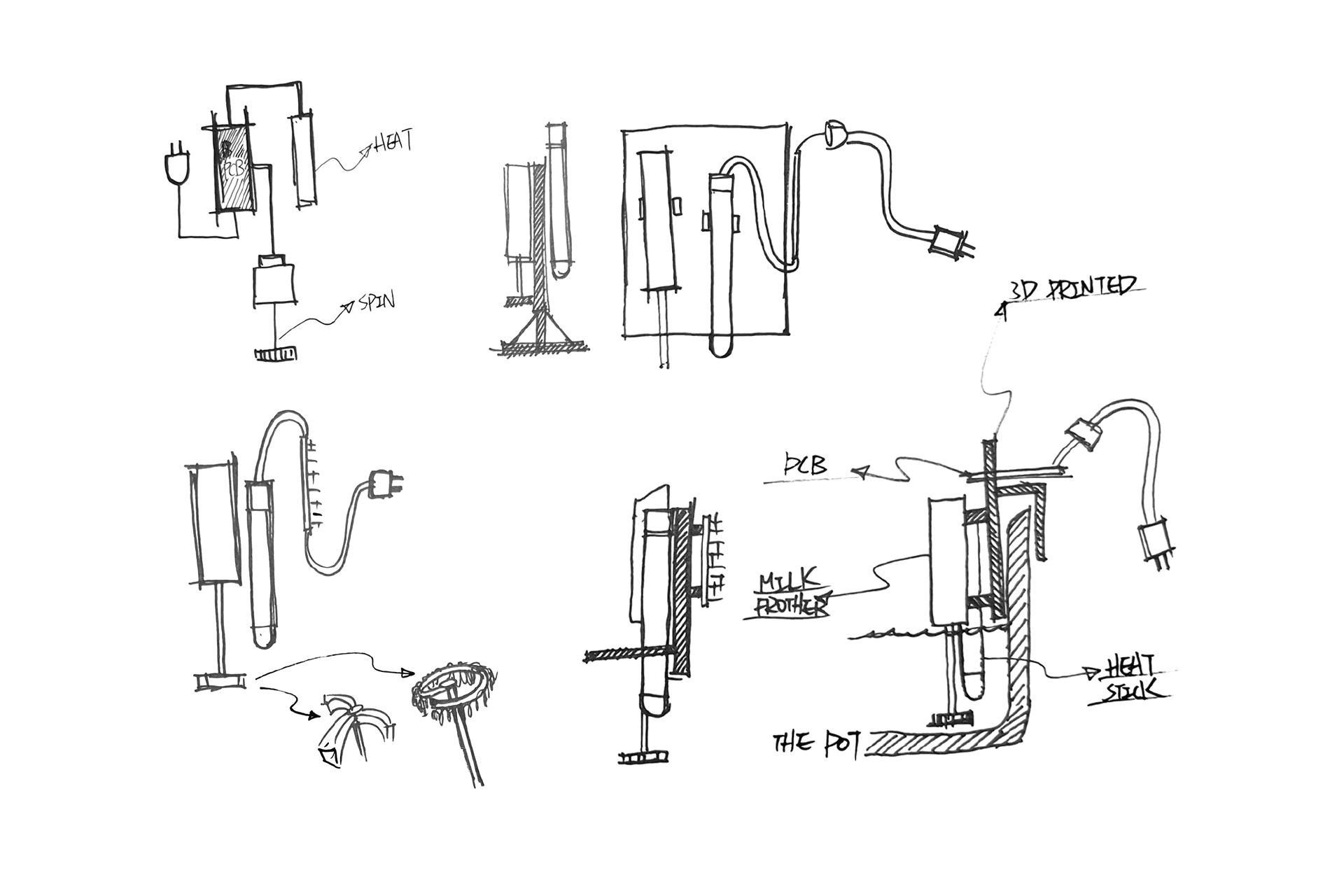

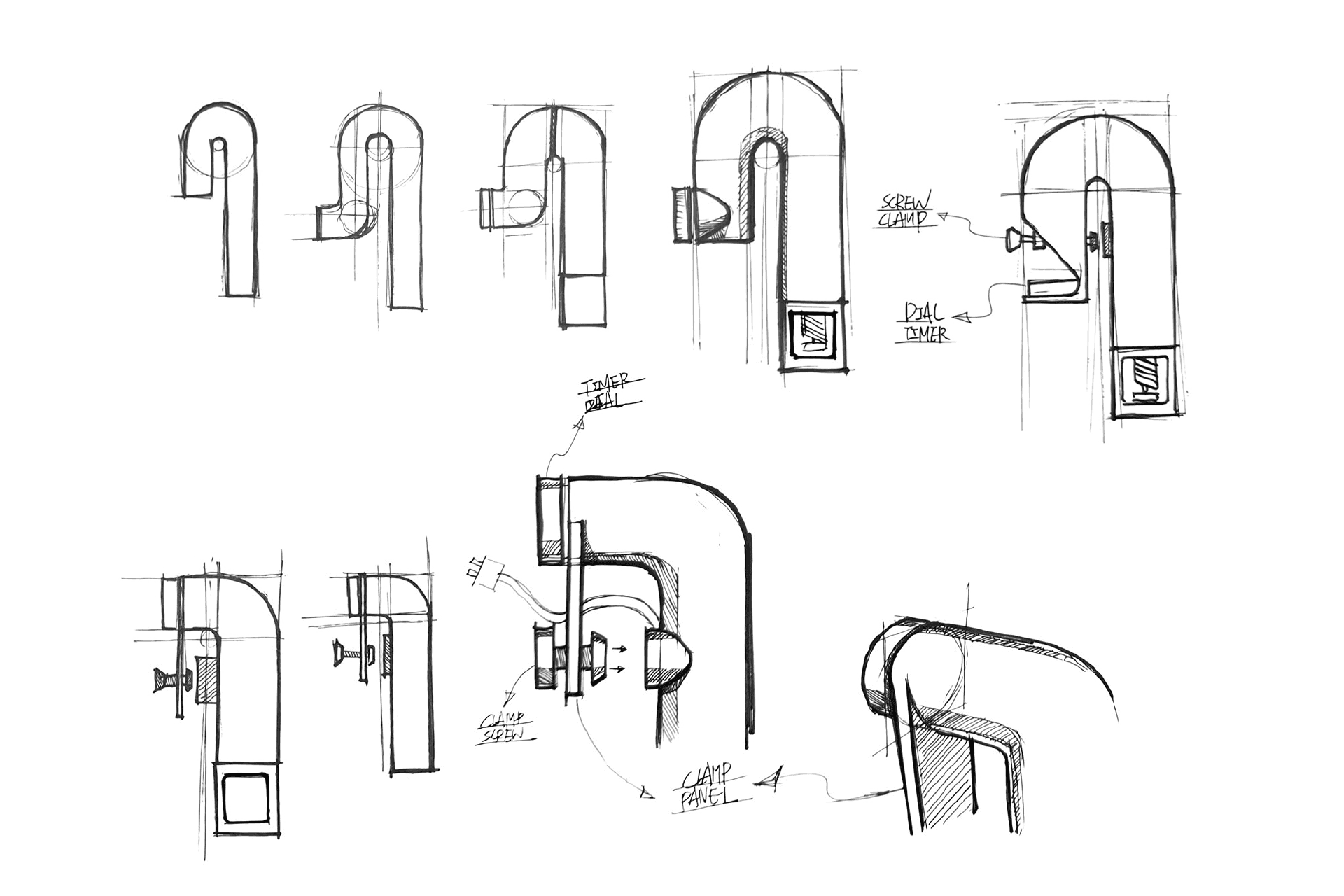

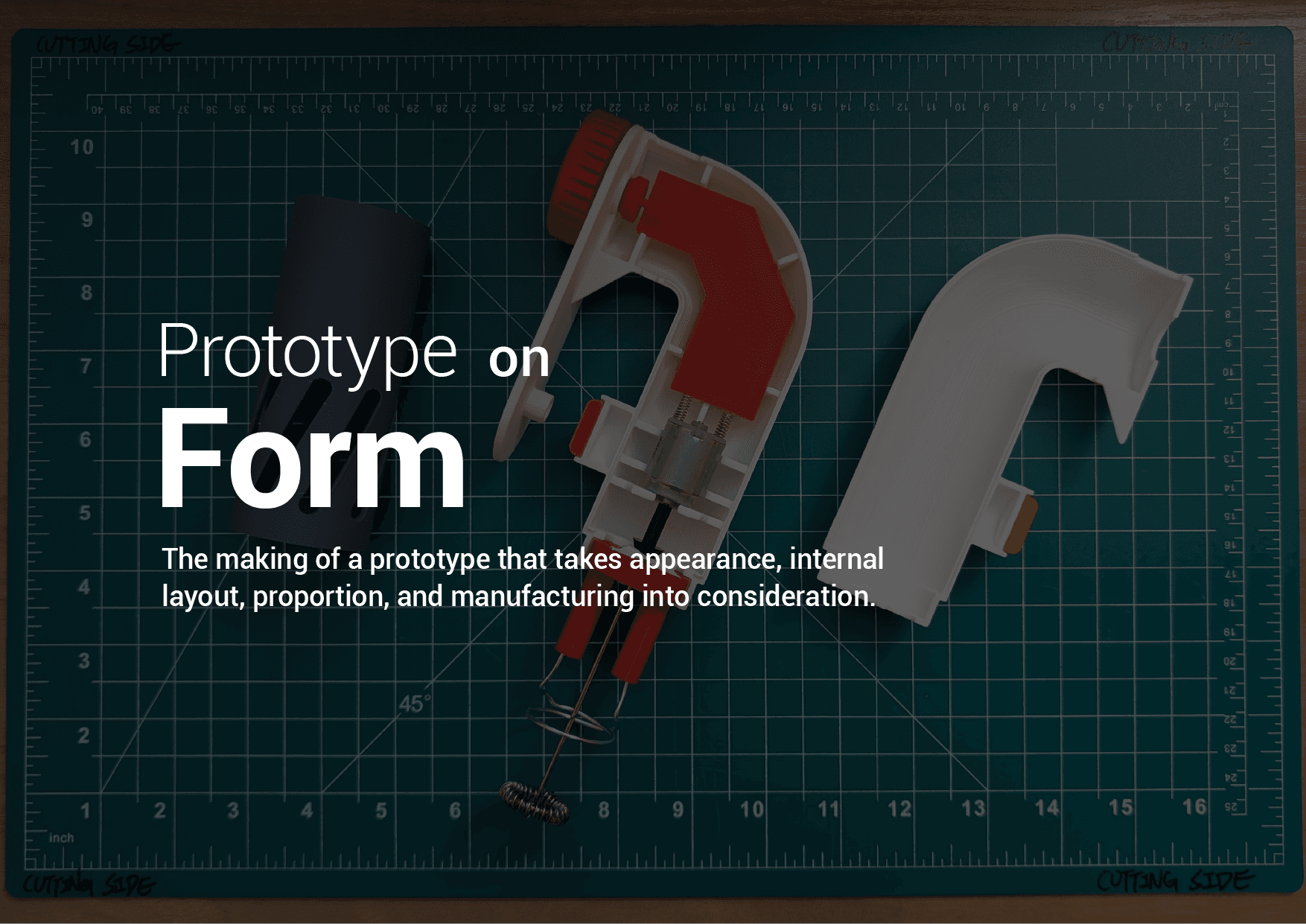

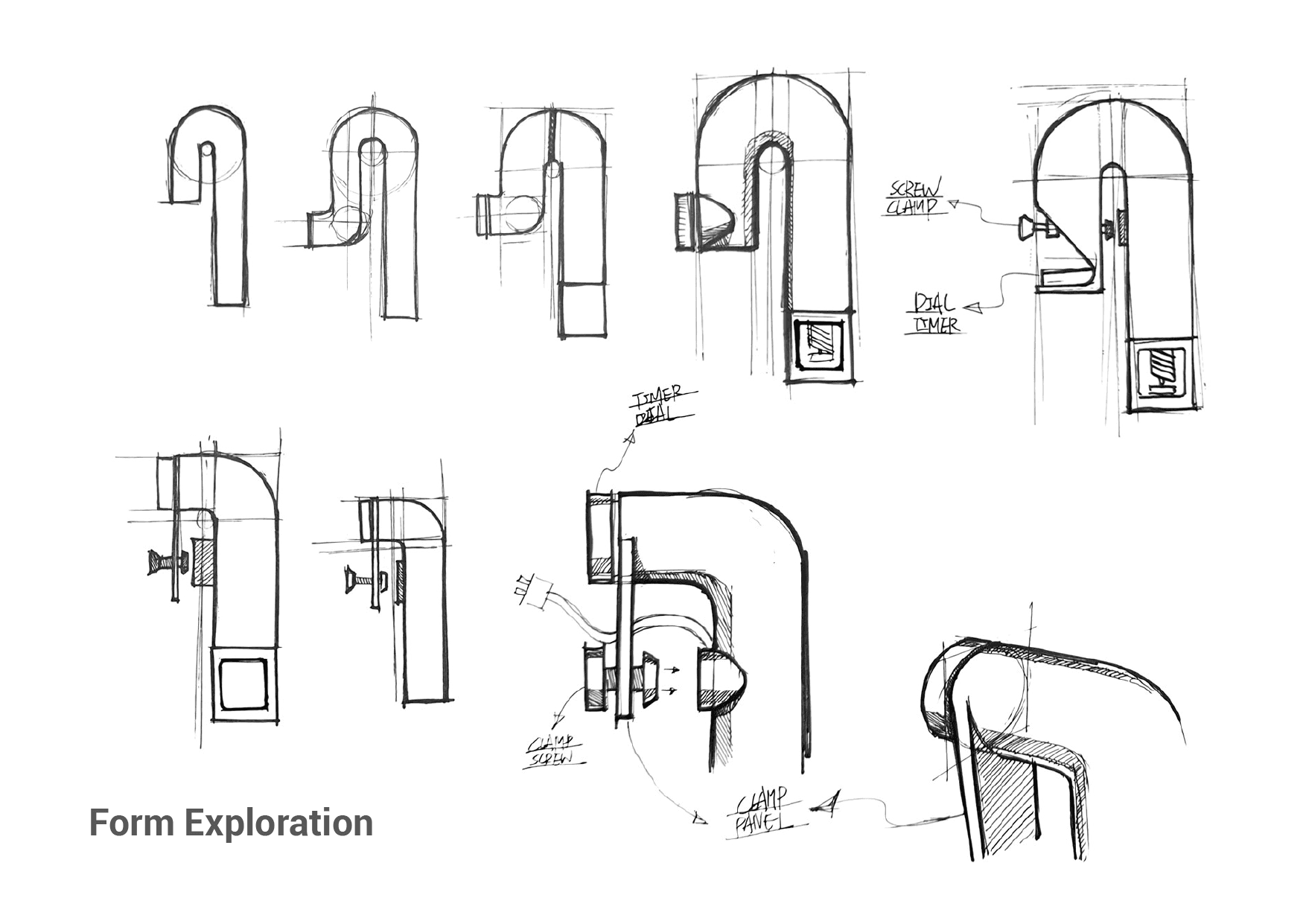

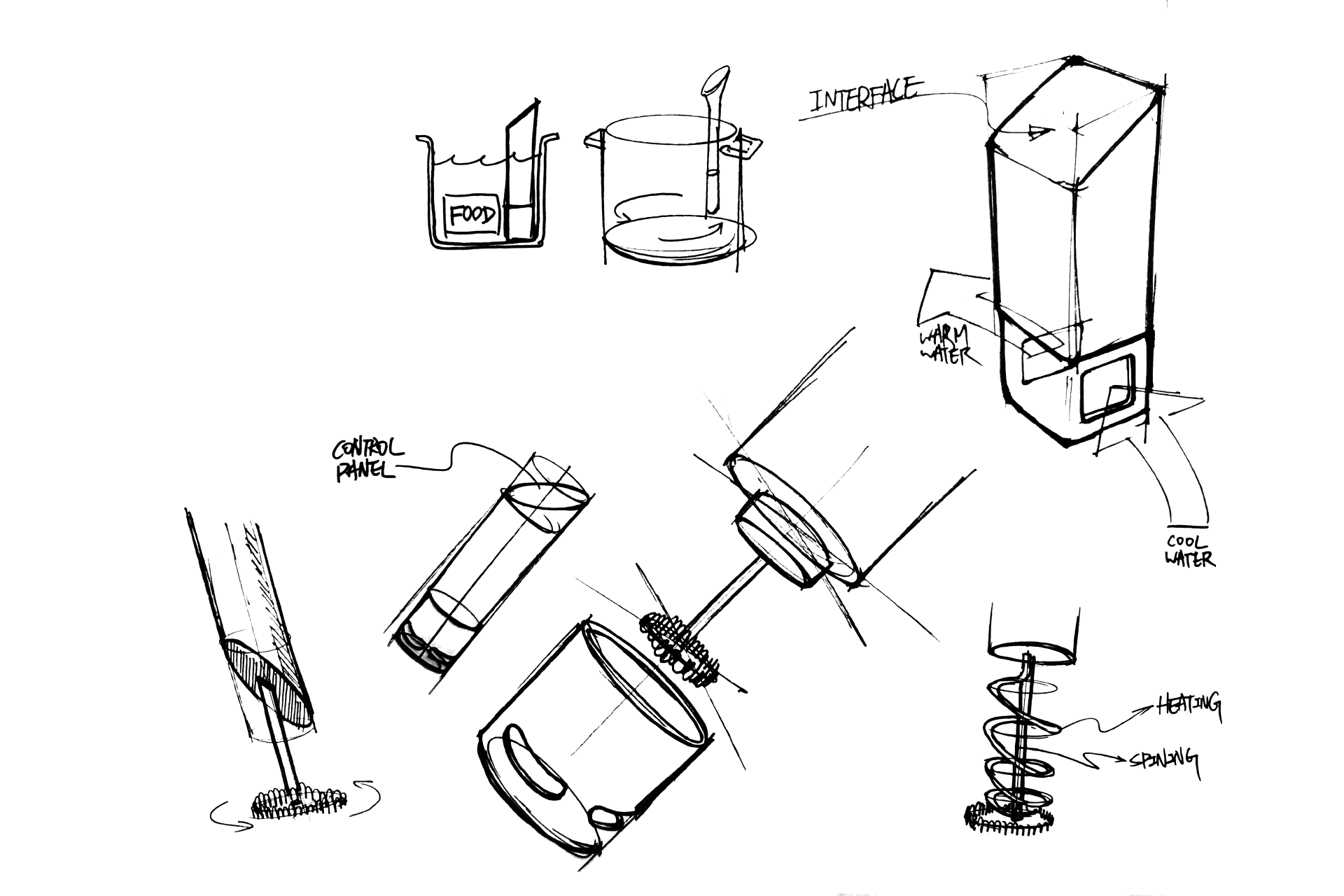

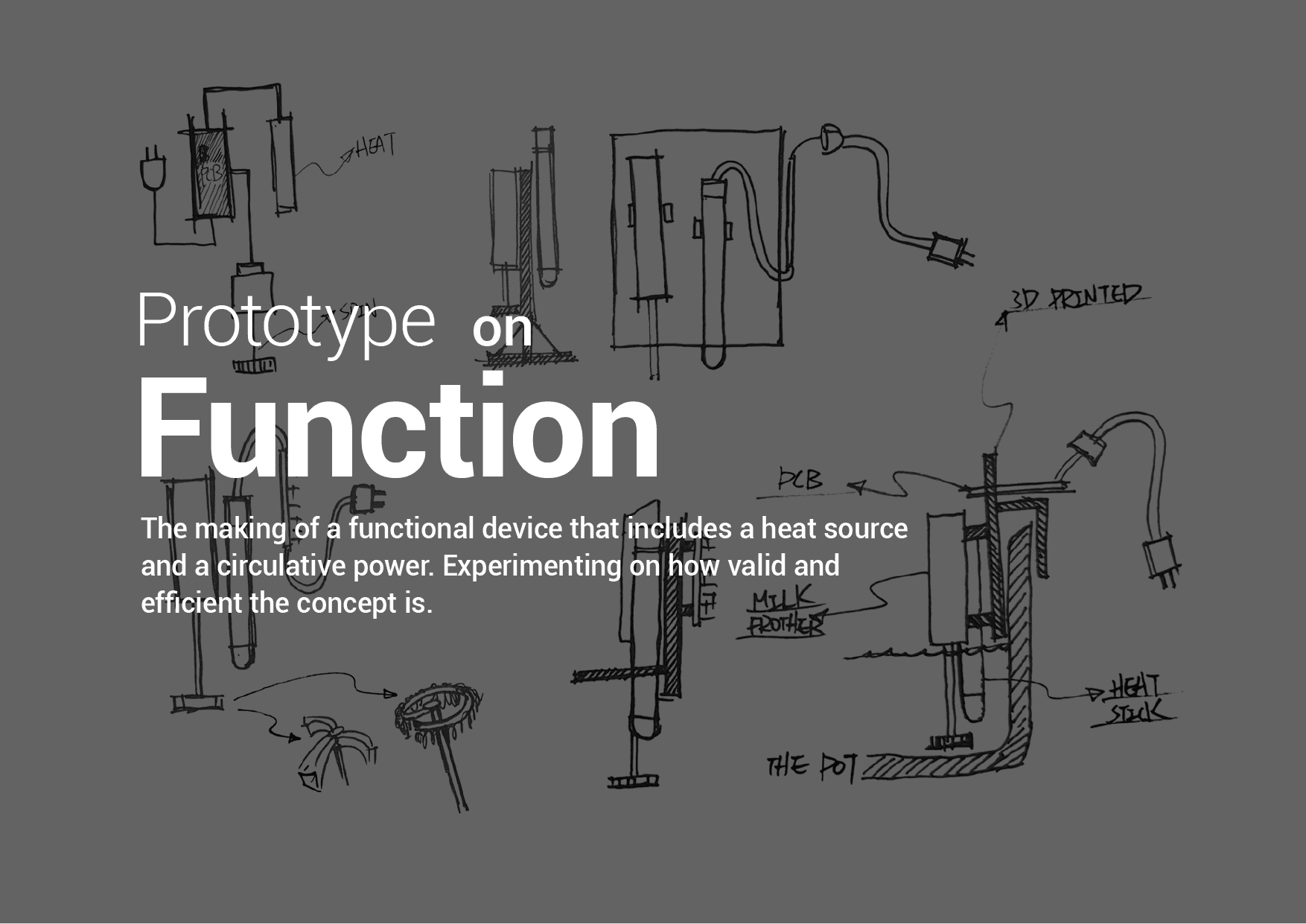

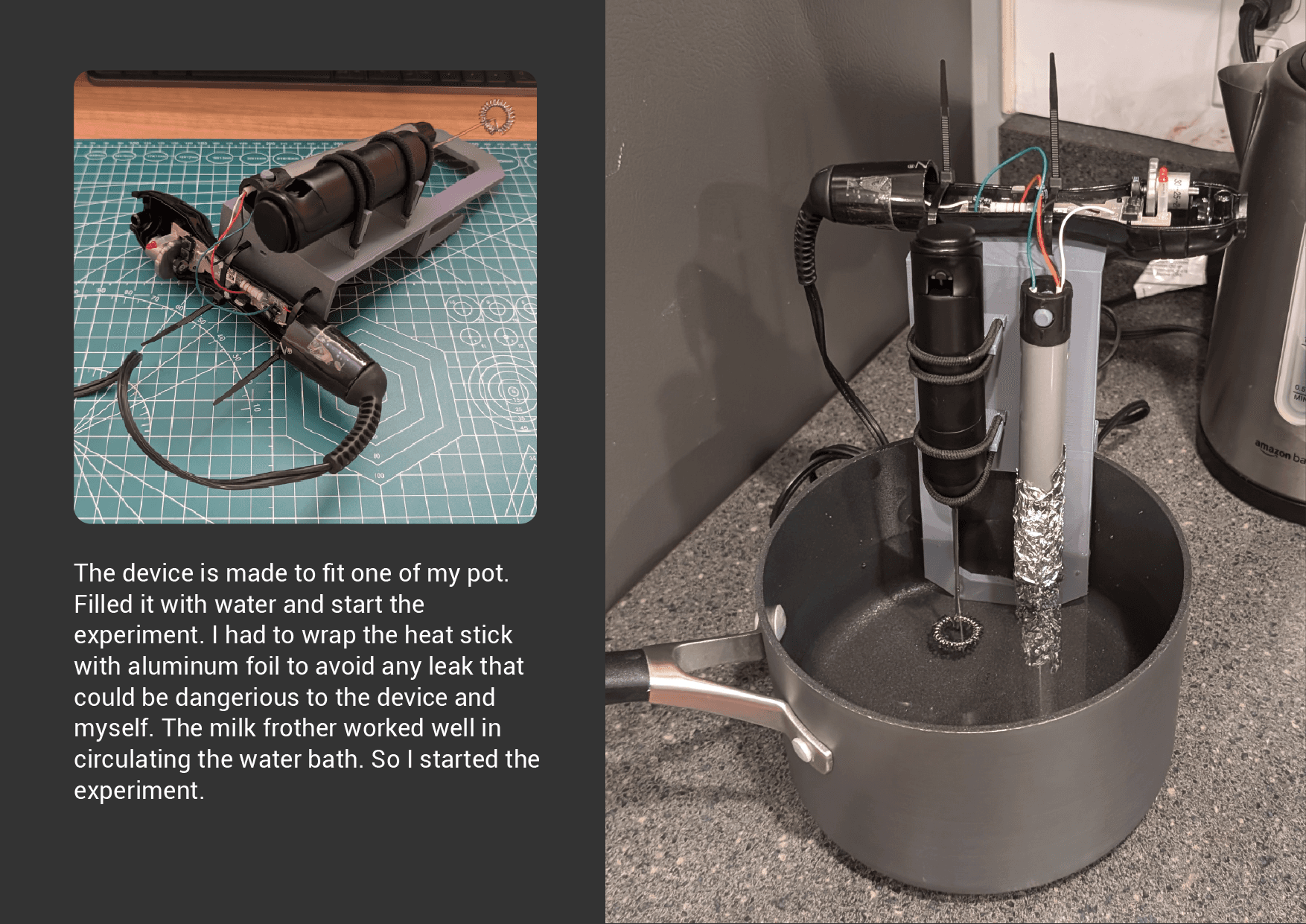

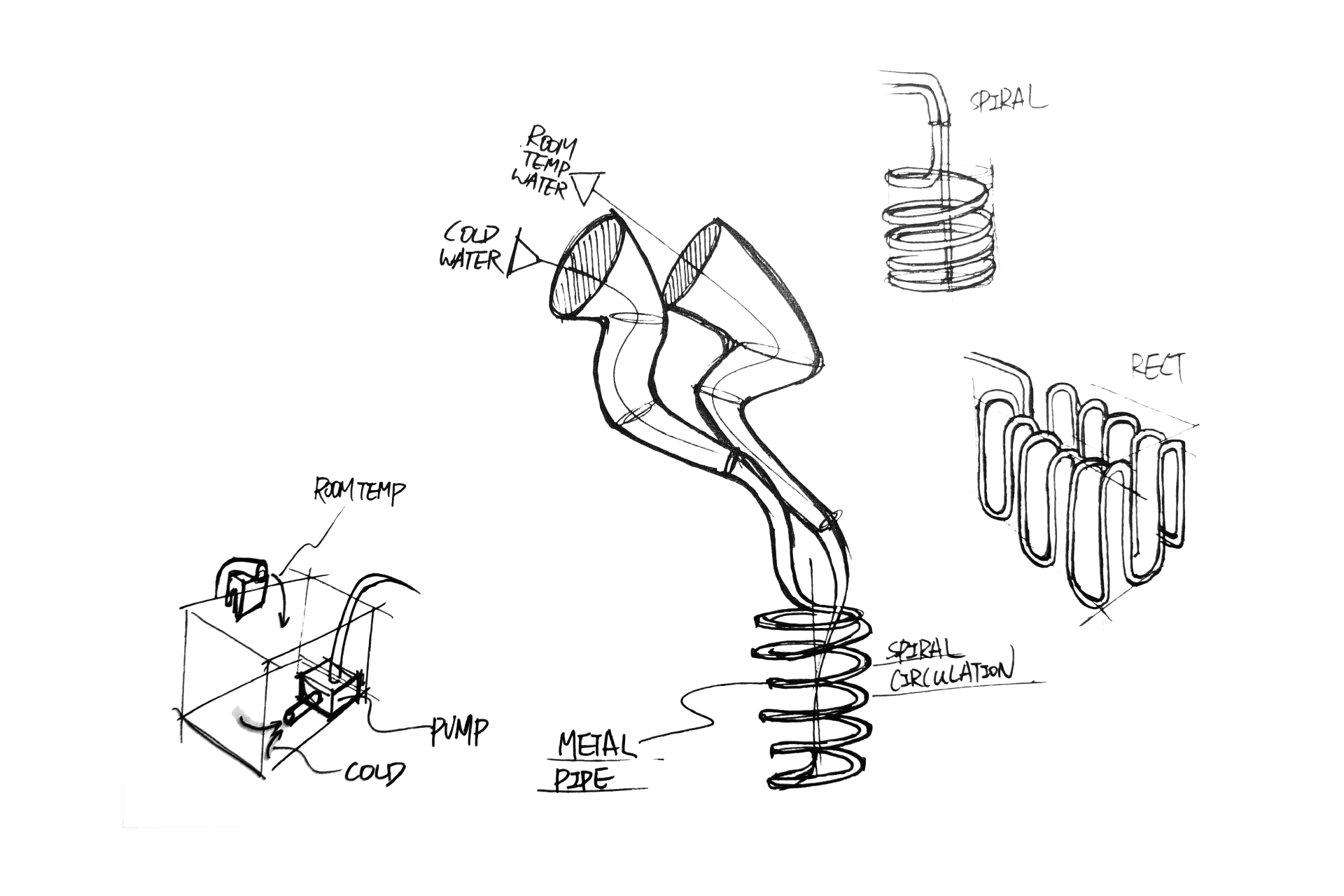

Sketches and Prototypes
